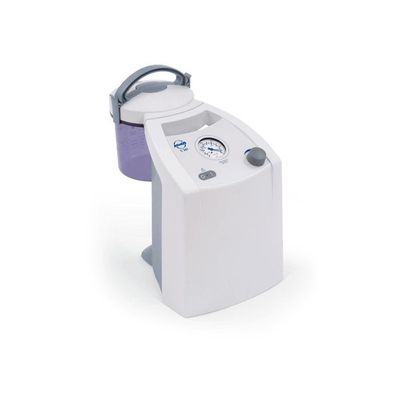

ATMOS - Model C 361 - Surgical Suction Device

Fewer user errors

thanks to easy handling

Versatile

through a variety of placement options and device versions

Immediately ready for use

thanks to fast vacuum build-up

• Hospital / clinic
• General medicine
• Intensive care unit
• Operating room / anesthesiology
• Normal ward
• Doctor`s practice
• Dental practice / maxillofacial surgery
• Practice for oral and maxillofacial surgery
• Outpatient surgery center

MOBILE AND HANDY

Depending on hospital, clinic or practice requirements, this surgical suction device can be used in any room. The ATMOS C 361 can be carried simply as a basic device from room to room or pushed on a trolley.

SIMPLE AND INTUITIVE CONTROLS

The device is easy to handle thanks to its individually adjustable vacuum, clearly visible vacuum gauge, and the perfect working height for the user.

PRACTICAL SECRETION CANISTER MANAGEMENT

The ATMOS Direct Docking System (DDS) allows the secretion canister to be attached directly to the ATMOS C 361. This eliminates the need for any hose connections between the device, the bacterial and viral filter, and the secretion canister. The ATMOS C 361 can also be flexibly equipped with various disposable canister systems.

Suction capacity
36 l/min

Max. vacuum
–91 kPa
–910 mbar

Vacuum control range
0 to –910 mbar

Operating mode
Continuous operation

Voltage
230 V, 50/60 Hz

Dimensions (H x W x D)
330 x 240 x 360 mm
(without trolley)
900 x 410 x 450 mm
(with trolley)

Weight
6.3 kg (without trolley)
10.5 kg (with trolley)

Noise level
< 50 dB(A)
