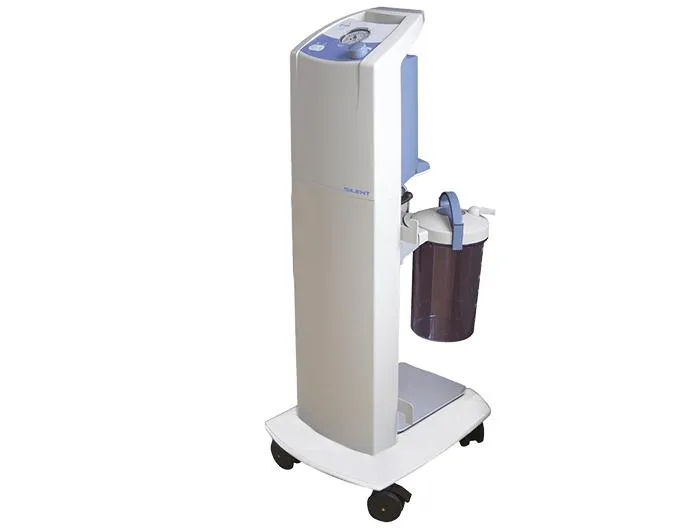

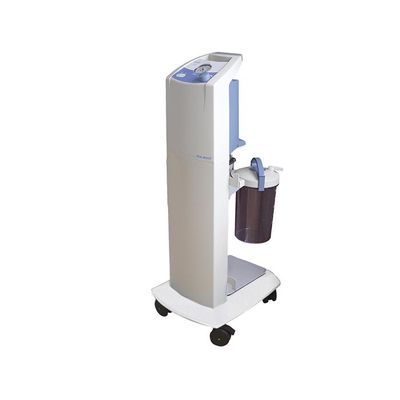

ATMOS -Model C 451 -Surgical Suction Device
One of the most important requirements when suctioning blood and other fluids is the high suction capacity a device can offer from the moment it is switched on. Its extremely powerful pump makes the ATMOS C 451 a highly versatile surgical suction device, especially for suction applications in operating rooms, surgical intensive care units and normal wards, emergency treatment cases, oral and maxillofacial surgery (OMS) as well as medical and dental practices.
Fewer user errors
thanks to easy handling
Maximum reliability
thanks to continuous suction and permanent operability in all situations
Fast vacuum build-up
through the use of a powerful diaphragm pump
- Hospital / clinic
- General medicine
- Operating room / anesthesiology
- ENT practice
- Doctor`s practice
- Dental practice / maxillofacial surgery
- Practice for oral and maxillofacial surgery
- Outpatient surgery center
MOBILE AND HANDY
Depending on hospital, clinic or practice requirements, the surgical suction device can be used in any room. The ATMOS C 451 can be carried simply as a basic device from room to room or pushed on a trolley.
MAXIMUM RELIABILITY
Fast vacuum build-up and high suction capacity keep the surgical site unobstructed
Continuous suction and permanent operability in all situations
Runs quiet as a whisper, making work pleasant and allowing you to concentrate on the operation
EASY AND INTUITIVE OPERATION
The device is easy to handle thanks to its individually adjustable vacuum, clearly visible vacuum gauge, and the perfect working height for the user.
PRACTICAL SECRETION CANISTER MANAGEMENT
The ATMOS Direct Docking System (DDS) allows the secretion canister to be attached directly to the ATMOS C 451. This eliminates the need for any hose connections between the device, the bacterial and viral filter, and the secretion canister. The ATMOS C 451 can also be flexibly equipped with various disposable canister systems.
Suction capacity
45 l/min
Max. vacuum
–91 kPa
–910 mbar
Vacuum control range
0 to –910 mbar
Operating mode
Continuous operation
Voltage
230 V~, 50/60 Hz
Dimensions (H x W x D)
330 x 240 x 360 mm
(without trolley)
1010 x 360 x 440 mm
(with trolley)
Weight
6.7 kg
14.3 kg
Noise level
≤ 48 dB(A)
Secretion canister
1500 ml
3000 ml
5000 ml
