MizuhoOSI Trios -Surgical Table System

Enhanced patient positioning for spine, imaging and orthopedic trauma

This modern system features a dual column modular platform known for its interchangeable patient positioning for spine, imaging, and orthopedic trauma procedures. Trios features a unique tabletop mounting interface that keeps the tabletop locked in place, single push electronic floor locks and a streamlined 180° patient rotation mechanism. Simple to set up and intuitive to use, Trios simplifies your workflow and minimizes the possibility of human error.

Each top works with the Trios Table Base and can be purchased individually or as part of a system.

• Tower and ratchet system that provides a unique tabletop mounting interface resulting in secure connection and adjustable table top height before and after patient transfer
• Powered floor locks
• Carbon fiber construction for complete radiolucency, allowing unrestricted C-arm and O-arm® access
• Streamlined 180° patient rotation mechanism, with two-stage locking release and clear indicator lights
• Positioning and operating functions controlled by an intelligent hand pendant, the IntelliPendant®, with two memory settings to retain the preferred position, and assist with setup
• Auxiliary panel provides a secondary source for controlling table motion
• Customizable pad and component placement to meet individual patient needs
• Tempur-Pedic®  Pad technology incorporated into all patient surfaces in supine or prone positioning

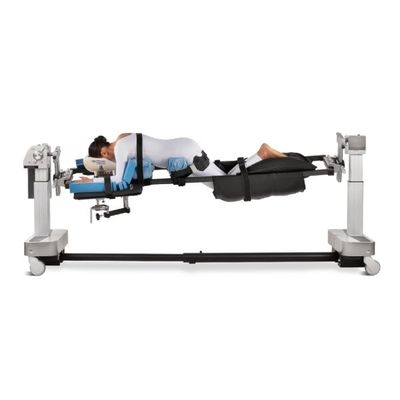

Trios Spinal Surgery Top

• Open spine frame reduces vena cava compression, minimizes epidural venous bleeding and improves visualization at the surgical site

Trios Radiolucent Imaging Top

• Supports supine or lateral positions
• Fully radiolucent, carbon fiber table top with Tempur-Pedic®  pressure equalization pad

Trios Orthopedic Trauma Top

• Modern table top with Traction Arc attachment features
• Traction Arc provides constant and anatomically correct traction for various trauma procedures
• Secure and flexible with multiple component options for either skin or skeletal traction
• Enhanced radiolucency by design

* Some procedures may require additional accessories

Spinal

• Laminectomies
• Decompressions
• Osteotomies
• Anterior/posterior fusions
• Surgical correction of deformities
• Anterior/posterior cervical procedures
• Kyphoplasties
• Vertebroplasties
• IDET surgeries

Imaging

• Vascular surgery
• Joint imaging
• Pain management

Orthopedic Trauma

• Hip pinning
• Supine IM femoral nailing
• Lateral IM femoral nailing
• IM tibial nailing
• Ender pinning

• Trios Table Base
• Crossbar to floor height 33–50.7” (83.8–128.8cm)
• Trendelenburg/Reverse Trendelenburg 10º
• Lateral tilt (roll) 25º
• Base width 32” (81cm)
• Base length 110” (279cm)
• Retracted base length 68” (173cm)
• Trios Spinal Surgery Top
• Table top length 84” (213cm)
• Table top width 17” (43cm)
• Patient weight capacity 650lbs (295kg)
• Trios Radiolucent Imaging Top
• Table top length 84” (213cm)
• Table top width 21.5” (55cm)
• Patient weight capacity 650lbs (295kg)
• Trios Orthopedic Trauma Top
• Table top length 84” (213cm)
• Table top width 21.5” (55cm)
• Patient weight capacity 500lbs (227kg)

Spinal Surgery Top

• Towers (2)
• Spine Frame
• ProneView® Helmet and Mirror Platform
• Face Plate
• Tempur-Pedic® Chest Pad
• Chest Plate
• Leg Board with 1” (2.5cm) Tempur-Pedic Pad (2)
• Adjustable Leg Sling
• Buttocks Strap
• Safety Strap 60” (152cm)
• Safety Strap 90” (229cm) (4)
• Cervical Traction Vector
• Table Top Cover
• Arm Boards sold separately. Quantity two (2) required.
• Hip/Thigh Pad Sets sold separately. Selection of one (1) set required.

Radiolucent Imaging Top

• Towers (2)
• Tempur-Pedic Pad 2” (5cm)
• Radiolucent Imaging Platform
• Supine Top Safety Strap
• Safety Strap 60” (152cm)
• Trios 6” (15cm) Side Rail Adaptor (2)
• Table Top Cover

Orthopedic Trauma Top

• Orthopedic Table Top
• Traction Arc with Cart
• Patient Transfer Board
• Traction Unit Upright (2)
• Traction Extension (3)
• Traction Unit (2)
• Traction Boot (pairs) small and large
• Traction Foot Plate (2)
• Soft Traction Boot, (pair) small and large
• 90° Pin and Wire Holder
• Kirschner Bow Holder
• G.M.Board, right and left
• Center Support Board with Pad
• Perineal Post, child and adult
• Lateral Ilium and Perineal Post
• Tibia Counter-Traction Post and Support Upright
• Well Leg Support and Swing Arm
• Tibia Well Leg Support
• Radiolucent Auxiliary Leg Spar
• Leg Spar Upright
• Leg Board
• Lower Leg Support
• Tibia Traction Upright
• Accessory Clamp (2)
• Safety Strap (2)
• Patient Isolation Drape Hanger Posts and Rods
• Universal Side Rail Adaptor, 6” (15cm)
• Table Top Cover
