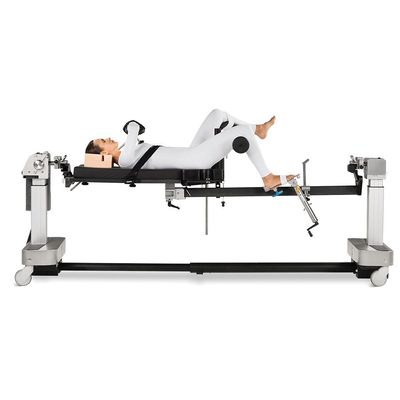

Trios -Surgical Table System
Our latest modular table platform, offering enhanced safety features, improved setup workflows, and increased weight capacity.
Modular table system components:
- Trios Table Base Part #7803
- Trios Spinal Surgery Top Part #7943
- Trios Radiolucent Imaging Top Part #7927
- Trios Orthopedic Trauma Top Part #7855
Enhanced patient positioning for spine, imaging and orthopedic trauma
This modern system features a dual column modular platform known for its interchangeable patient positioning for spine, imaging, and orthopedic trauma procedures. Trios features a unique tabletop mounting interface that keeps the tabletop locked in place, single push electronic floor locks and a streamlined 180° patient rotation mechanism. Simple to set up and intuitive to use, Trios simplifies your workflow and minimizes the possibility of human error.
Each top works with the Trios Table Base and can be purchased individually or as part of a system.
- Tower and ratchet system that provides a unique tabletop mounting interface resulting in secure connection and adjustable table top height before and after patient transfer
- Powered floor locks
- Carbon fiber construction for complete radiolucency, allowing unrestricted C-arm and O-arm® access
- Streamlined 180° patient rotation mechanism, with two-stage locking release and clear indicator lights
- Positioning and operating functions controlled by an intelligent hand pendant, the IntelliPendant®, with two memory settings to retain the preferred position, and assist with setup
- Auxiliary panel provides a secondary source for controlling table motion
- Customizable pad and component placement to meet individual patient needs
- Tempur-Pedic® Pad technology incorporated into all patient surfaces in supine or prone positioning
- Open spine frame reduces vena cava compression, minimizes epidural venous bleeding and improves visualization at the surgical site
- Supports supine or lateral positions
- Fully radiolucent, carbon fiber table top with Tempur-Pedic® pressure equalization pad
- Modern table top with Traction Arc attachment features
- Traction Arc provides constant and anatomically correct traction for various trauma procedures
- Secure and flexible with multiple component options for either skin or skeletal traction
- Enhanced radiolucency by design
* Some procedures may require additional accessories
Spinal
- Laminectomies
- Decompressions
- Osteotomies
- Anterior/posterior fusions
- Surgical correction of deformities
- Anterior/posterior cervical procedures
- Kyphoplasties
- Vertebroplasties
- IDET surgeries
Imaging
- Vascular surgery
- Joint imaging
- Pain management
Orthopedic Trauma
- Hip pinning
- Supine IM femoral nailing
- Lateral IM femoral nailing
- IM tibial nailing
- Ender pinning
We guarantee our products for a period of one year from the date of shipment from Mizuho OSI for defects in material and workmanship with the exception of products which are misused, altered or damaged.
Patents- US 9,713,562
- US 9,700,476
- US 10,149,793
- US 10,888,481
- Trios Table Base
- Crossbar to floor height 33–50.7” (83.8–128.8cm)
- Trendelenburg/Reverse Trendelenburg 10º
- Lateral tilt (roll) 25º
- Base width 32” (81cm)
- Base length 110” (279cm)
- Retracted base length 68” (173cm)
- Trios Spinal Surgery Top
- Table top length 84” (213cm)
- Table top width 17” (43cm)
- Patient weight capacity 650lbs (295kg)
- Trios Radiolucent Imaging Top
- Table top length 84” (213cm)
- Table top width 21.5” (55cm)
- Patient weight capacity 650lbs (295kg)
- Trios Orthopedic Trauma Top
- Table top length 84” (213cm)
- Table top width 21.5” (55cm)
- Patient weight capacity 500lbs (227kg)
