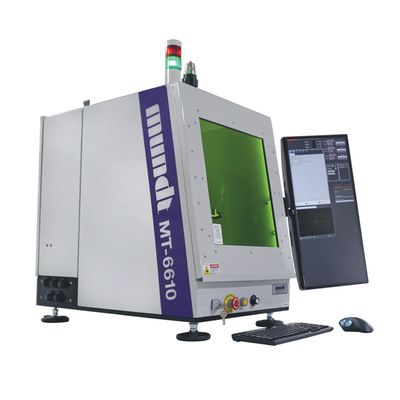

Mundt -Model MT-6610 -Tabletop Laser Work Station
The MT-6610 is a small footprint system that answers the need for a powerful robust Tabletop Laser Workstation that specializes in advanced laser technology to meet the demands of today`s industry challenges for small, complex high value parts, often manufactured with expensive materials.
Most popular related searches
- A tabletop Workstation
- Available in Class I or Class IV configurations
- Travel & Work Area = 6” X 6” X 10”
The MT-6610 can be built to suit with specified options for individual specialty requirements.
| Travel X Axis | 6 in |
| Travel Y Azis | 6 in |
| Travel Z Axis | 10 in |
| Travel Rotary Axis Optional | Continuous |
| Maximum X Axis Speed (ballscrew) | 6 in/sec |
| Maximum Y Axis Speed (ballscrew) | 6 in/sec |
| Maximum Z Axis Speed (ballscrew) | 5 in/sec |
| Maximum X Axis Speed With Linear Motor | 15 in/sec |
| Maximum Y Axis Speed With Linear Motor | 15 in/sec |
| Maximum Speed Rotary Axis Optional Gear Drive | 150 RPM |
| Accuracy X Axis | +/- .0005 in/ft |
| Accuracy Y Axis | +/- .0005 in/ft |
| Accuracy Z Axis | +/- .0005 in/ft |
| Accuracy X Axis Optional Linear Motor | +/- 5 µm/m |
| Accuracy Y Axis Optional Linear Motor | +/- 5 µm/m |
| Accuracy Z Axis Optional Linear Motor | +/- 5 µm/m |
| Accuracy Optional Rotary Axis | 200 arc-sec |
| Positioning Resolution X Axis | .000016 in |
| Positioning Resolution Y Axis | .000016 in |
| Positioning Resolution Z Axis | .000016 in |
| Positioning Resolution X Axis Optional Linear Motor | 250 nm |
| Positioning Resolution Y Axis Optional Linear Motor | 250 nm |
| Positioning Resolution Z Axis Optional Linear Scale | 250 nm |
| Positioning Resolution Optional Rotary | 3.2 arc-sec |
| Brushless Servo Motor Control | X,Y and Z |
| Heavy Duty Roller Ways | X,Y and Z |
| Machine Base | 2-1/2 in Steel Tubing |
| Optional Manual Closing Collets | 1C |
| Optional Chuck for Rotary | 2 in |
| Optional automatic closing Collet | 1C |
