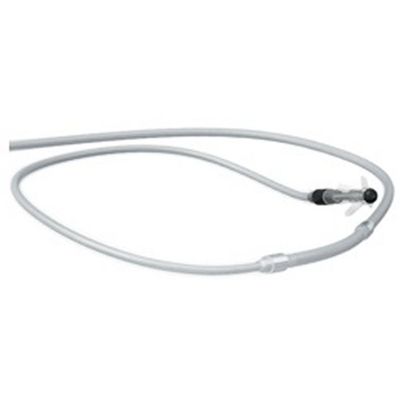

MEDICO -Model PHYMOS 4 -Tetrapolar Single Lead for VDD Pacing
FromMEDICO S.R.L.
Phymos 4 model allows to perform an effective VDD pacing with floating atrial electrodes, thanks to the 3 cm dipole which from the beginning characterizes MEDICO MEDICO S.p.A.system: it guarantees an excellent reliability of the detection of sino-atrial node, also in the long-term.
Most popular related searches
It is compatible with a 7 Fr introducer and is easily handled on implant, with easy and effective positioning. The material of the atrial electrodes is Pt-Ir whereas ventricular electrodes is microporous Ti coated by Pt. They allow satisfactory performance both in pacing and sensing, in addition an high visibility in scopy.
- Atrial electrode material: platinum-iridium
- Ventricular electrodes material: Microporous titanium coated by platinum
- Sheath material: silicone, medical grade
- Distance between atrial dipole and ventricular electrode: 9, 11, 13 e 15 cm
- Atrial dipole length: 30 mm
- Length: 58, 62 cm
- Atrial and ventricular connection: IS-1 bipolar
- Suggested introducer: 7 Fr
