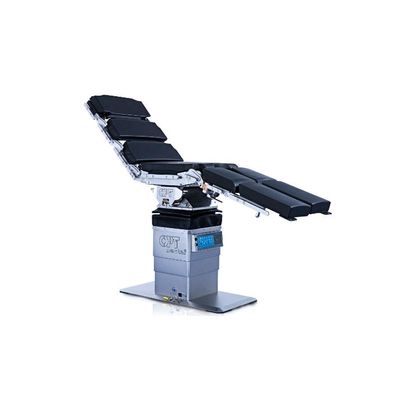

Model VANTO II - The Power In Surgery

SHARE

The VANTO II operating system with transferable table tops was created by OPT in 2018 and incorporates all of OPT’s one hundred years’ experience. The continuing and increasing staff turnover in the operating room inspired OPT to create an operating system with high technology and powerful performances and at the same time easy to use and whose functions are easy to comprehend. VANTO II with transferable table tops is made up of three fundamental elements: column, table top and trolley (longitudinal or lateral) for moving the system. It has been conceived and designed to satisfy the needs of multidisciplinary operating room. Vanto II universal system satisfies the needs of modern operating theatres and thanks to the wide and complete range of accessories and components, this table offers the possibility of satisfying with only one table top all the needs of every surgery specialty in an OR.

Most popular related searches
surgery table
operating room
surgery
thorax surgery
leg section
surgery system
trauma surgery
surgery operating table
surgical
patient size
Mobile column

It is the heart of the operating table, controls all movements and allows to memorize and recall automatically all the main recurring operating positions. Managed by a microprocessor and mounted on an ultra-flat base of minimum thickness, it is made of top quality stainless steel and designed to occupy the minimal amount of space, to facilitate every surgeon’s action and his/her assistants and to ensure the maximum stability.

Mobile plus column

VANTO II Plus has two wheels integrated to the base of the column which allow to transfer the table without using the standard trolley. An auxiliary removable mini trolley can be used for intraoperative transfers or minor adjustments before, during or after the surgery.

Stationary column

Stationary fixed column, rotating. The column is controlled by a microprocessor and is mounted on a support plate in machined brass, which is anchored in the screed of the operating theatre. The column is complete with OR gaskets and makes its rotation without any obstruction, with an electronic locking device for any position. Complete with control panel with a display on the column.

The universal table tops are completely modular thanks to the single and symmetrical central section to which numerous components (head and leg sections, elongation modules) can be added. Vanto II system automatically detects the configuration setting and the table top orientation and recognizes the modules and accessories attached to the central module of the table. The modules which compose the table top have all radiolucent, antistatic, anti-decubitus and ergonomically shaped cushions and have on both sides and on their entire length stainless steel rails (25*10 mm) to hook the specialistic accessories.

TOP Universal Table Top
.
The operating table top of VANTO II system is universal and suitable for all surgical specialties, including traumatology, with maximum performance. It has been designed to sustain patients of every size and at the same time without causing trouble to the OR operators during procedures. It is highly ergonomic thanks to the exceptional modularity and flexibility of its sections.
Universal Table Top
.
The operating table top of VANTO II system is universal and suitable for all surgical specialties, including traumatology, with excellent performance. It has been designed to sustain patients of every size and at the same time without causing trouble to the OR operators during procedures. It is highly ergonomic thanks to the exceptional modularity and flexibility of its sections.
Table Top for Thoracic Surgery
New operating table top for VANTO II, with unique characteristics suitable surgical disciplines, Pulmonary, Thoracic, Abdominal, and Orthopaedic.
Even though it is a specialistic table top, used together with some accessories it can also be used for Gyno, Uro, and Proctology, and with the patient in a reverse position, it can also be used for Vascular, Abdominal and Eye.
Vascular Carbon Fibre Table Top
The table top has a longitudinal slide of 700 mm and bilateral slide of 105 mm (type “XY”), both movements can be performed simultaneously. It has been designed to satisfy for all surgical specialties where the main required feature is radiotrasparency. It is complete with antistatic, radiolucent, electro-conductive cushion whose height is 80 mm.

OPT is the only company in the world that can offer longitudinal (head side and foot side insertion) and lateral trolleys (right and left side insertion) to extract only the table top (with or without patient) and/or to move the entire system (column+table top).

Main feature of the VANTO II system is the possibility of choosing a lateral trolley, that allows to position the table top without moving all the other surgical equipment (which is particularly useful, above all in ortho-traumatological surgery).

Longitudinal Trolley

Available in 3 versions:

  • standard trolley
  • trolley with Trendelenburg and reverse Trendelenburg
  • trolley with adjustable height with Trendelenburg and reverse Trendelenburg

Lateral Trolley

Available in 3 versions:

  • standard trolley
  • trolley with Trendelenburg and reverse Trendelenburg
  • trolley with adjustable height with Trendelenburg and reverse Trendelenburg

Mini Trolley

An optional Mini trolley is used for the VANTO II Plus column to provide small movements in the operating theater. It can move the column and/or complete system without using external trolleys or units.
