Theralase - Model TLC-2000 Series - Therapeutic Laser

SHARE

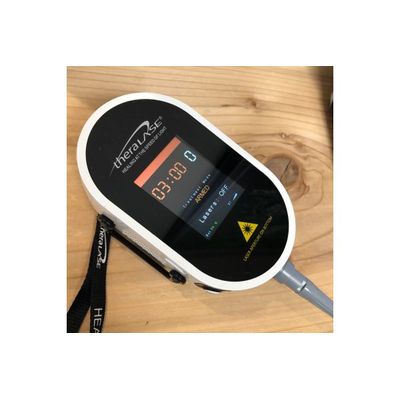

The Theralase TLC-2000 CLT is a medical device consisting of a hand-held multiple laser probe (5 x 905 nanometer (“nm”) Near Infra Red (“NIR”) super-pulsed laser diodes, providing up to 200 milliWatts (“mW”) average power each, superpulsed at 100 Watts  and 4 x 660 nm visible red laser diodes, providing up to 100 mW average power each, pulsed at 300 mW). The TLC-2000 CLT is used in direct contact with tissue to deliver laser light energy deep into tissue.

Most popular related searches
medical device
therapeutic laser
inflammation pain
pain inflammation
inflammation reduction
tissue specific
pain management
healing system
Super-pulsed, Multi-wavelength And Revenue-generating Technology ("SMART")

Theralase SMART CLT is a first of its kind. An approach that features a patient-focused algorithm that, with the help of wireless BlueTooth® technology, can treat up to 4 patients or 4 different patient conditions, simultaneously, using only true laser diodes and a superpulsed delivery mode to accelerate healing, reduce inflammation and eliminate pain.

  • 100,000 mW Peak Power : Effective energy delivery deep into the injured tissue.
  • 9 True Laser Diodes :Unlike Light Emitting Diodes (“LEDs”) (low priced, not collimated light sources) , laser diodes provide 100% of their light energy in the direction of the tissue condition.
  • Superpulsed Dual Wavelength Technology : Targets all three known cellular pathways for enhanced bio-stimulation effect.
  • Faster Treatment Times : The SMART Laser Technology delivers tailored, optimal energy dose in less time.
  • 100+ Treatment Protocols : Continuous automatic treatment protocol update for optimized, patient-centric treatments.
  • Advanced Technology : The unique technology analyzes how the patient’s tissue reacts to the CLT and adjusts the dosage of laser light energy accordingly.

Theralase superpulsed 905 nm NIR and 660 nm visible red laser technology accelerates healing by reducing pain and inflammation while staying below the Maximal Permissible Exposure (“MPE”) limit for tissue. Each treatment is able to be customized per patient to ensure that they are receiving the optimal dosage of laser energy. To achieve this, Theralase CLT systems employ customizable pre-programmed treatment protocols that adjust using individual patients` physical characteristics and biometric information. Using superpulsed laser technology, Theralase systems are able to penetrate up to 5 inches of tissue depth.

  • Laser Class: 3b
  • Wavelengths: 4x 660 nm and 5x 905 nm laser diodes
  • Average Power: 660 nm: Up to 100 mW pulsed, 905 nm: Up to 200 mW superpulsed 905 nm
  • Peak Power 100,000 W
  • Pulsing: 10,000 Hz
  • Beam Profile: Homogeneous
  • Battery: Up to 4 hours (one probe)
  • Dimensions: Probe 70 mm x 135 mm x 40 mm; Power Pack 140mm x 140 mm
  • Weight: 430 g.
  • Technology: High performance laser diodes
  • Technology: 12 inch touch-screen computer
  • Technology: WiFi enabled software updates
  • Technology: Bluetooth® enabled
