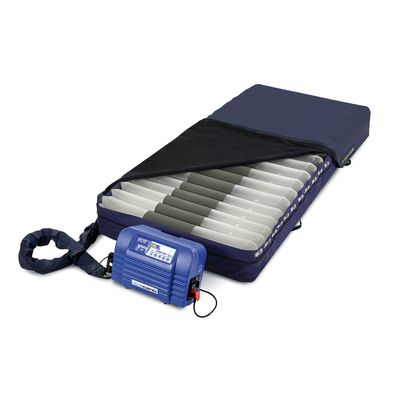

novacare -Model LAS 500N Bariatric -Therapy System
The LAS 500 N Bariatric Therapy System is used for the treatment of pressure ulcers up to grade IV according to EPUAP.
- mattress replacement system for low air loss therapy
- 8 inch TPU cells, two-part with static base
- 1:3 alternating pressure mode – adjustable in 5 min. intervals
- pressure sensor with acoustic and visual alarm
- automatic start function
- static mode
- care mode
- pulsation mode
- bariatric mode for patients up to 340 kg (120 cm mattress)
- sit-up sensor
- automatic key-lock-function (3 min.)
- power failure alarm
- intelligent fault detection with LED indicator
- CPR quick valve
- external cell holding, cells with stitched holding straps
- rugged base material with holding straps and transport handles
- bi-elastic PU protection cover with all-round zipper
- transport bag
Item No. 990301
Control unit
Measurements: approx. 42 x 28 x 19 cm
Weight:: approx. 6 kg
Digital control with pressure sensor, alternating, static, pulsating and care modes. Adjustable cycles in 5 minute increments (5 – 30 min), automatic key lock function (3 min.), low pressure alarm, power failure alarm.
Cycle adjustable: from 5 – 30 min. (in 5 minute intervals)
Length power cable: 4 m
Max. flow: 1350 ltr. / min.
Mattress Overlay
Measurements (inflated incl. 2 cm mattress base):
200 x 120 x 22 cm
Weight: 15 kg
Cells
Cell Measurements: 120 x 11 x 20 cm
Cell Material: TPU
Included in delivery:
transport bag for mattress and control unit, foam mattress base with nylon cover
