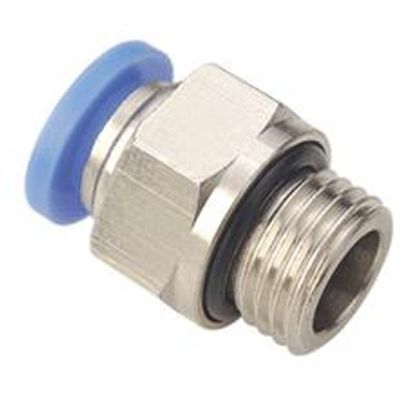

Pneuflex -Model 4mm Tube to BSPP 1/4 -Thread Male Connector
4mm Tube to G, BSPP 1/4 Thread Male Connector Push in Fittings | One Touch Tube Fittings.
Most popular related searches
- Part#: PC 04-G02
- Push in Tube O.D: 4mm
- Thread: G, BSPP 1/4
- Thread Sealing: O-ring
- Working Pressure: 0—1.0MPa | 0—150psi
4mm tubing, G, BSPP 1/4 thread male connector push in fittings (4mm to BSP 1/4 thread push in fittings, one touch tube fittings). The thread is equiped with an O-ring for sealing purpose. This is a popularly used part in pneumatic equipments.
The body can be nickel plated brass or natural brass. Proof pressure is up to 3.0Mpa(435psi). External tightening with a flat wrench or socket wrench, internal adjustment with an Allen wrench.
Blue, Black, Red, Grey and custom color collets are available. Oval and Round shape are available.
Pneuflex`s BSP (G) thread pneumatic push in male connector straight fittings accommodate both metric and inch tubing:
Metric Tubing: 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm
Inch Tubing: 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2"
