Model PYR2 - Tire Pyrometer with Needle Probe

SHARE
Measuring tire temperature with Prisma Electronics’ digital tire pyrometer with K-type needle probe has never been easier! Tire probe diameter: 1mm. Tire probe max temperature: – 0°C to 200°C. 12 Points of tire temperatures for each set. AIR temperature + TRACK temperature. TIME + DATA. 30 data sets saved in the device. In stock – Ships within 24 Hours. Product Part Number: PYR2
Most popular related searches
needle probe
needle diameter
needle design
With Prisma Electronics’ digital tire pyrometer with k-type needle probe, it is possible to evaluate the dynamic setup of a vehicle by measuring temperatures at different points on the tire:
  • external
  • intermediate
  • internal

For each test, you can save: 12 points of tire temperature, air temperature, track temperature, date, and time.

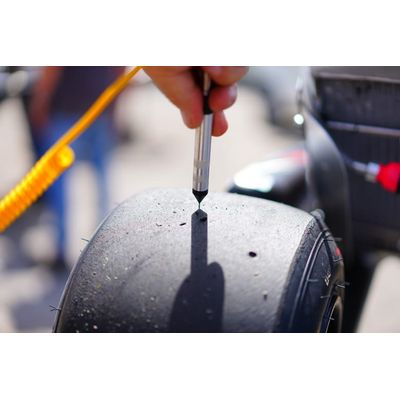

 Thanks to the K-type needle probe`s diameter of 1 mm, it is possible to penetrate inside the compound and have the exact tire temperature

  • C° and F° Temperature units
  • Measure resolution: 1°C / 1.8°F
  • Temperature error : +/- 1°C
  • Temperature range of the instrument : 0°C – 1000°C
  • 12 points of tire temperatures for each set
  • AIR and TRACK temperatures
  • DATE and TIME
  • Memory stores 30 complete sets of data
Digital tire pyrometer with needle probe: why should you use it?

Prisma Electronics has developed a digital tire pyrometer that measures and records tire temperatures at three key points on the tire: external, intermediate, and internal. Additionally, it can save temperatures of both the asphalt and air, providing all necessary parameters for immediate display. The unique feature of our digital tire pyrometer with k-type needle probe is its ability to save 30 complete sets, each consisting of 12 tire temperature points, air temperature, track temperature, date, and time.
