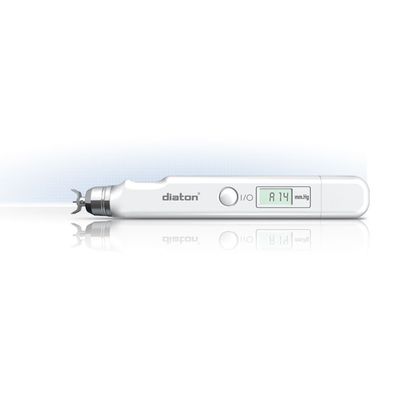

Diaton - Tonometer

• Quick and painless screening examinations of adult or pediatric patients
• Safe tonometry – No contact with mucous membrane or cornea; No Risk of Infecting
• IOP control during selection of adequate medicines
• IOP measuring in the presence of chronic conjunctivitis, corneal erosion, edema and cornea dimness
• IOP measuring in patients after corneal surgeries
• Intraocular pressure monitoring (diurnal tension curve)
• IOP measuring in immobilized patients and in children
• IOP measuring during contact correction (contact lenses or scleral lenses are not taken out).
• Tonometer Diaton is the perfect solution in the following cases when the use of other tonometry devices is problematic or impossible: Keratitis, Conjunctivitis, Keratotone, Cornea Dimness, Keratoprosthesis, Keratoplastics, LASIK, LASEK, PRK, Astigmatism, Ametropy, etc.,

Diaton Tonometer is intended for use by Ophthalmologists, Optometrists, Ophthalmic technicians as well as Inpatient & Outpatient Clinics such as Hospitals, Emergency Rooms, Urgent Care Clinics, Nursing & Elderly Homes, General & Specialty Practitioners.

Measurement range, mm Hg: 5-60
Measurement error: Limit of the admissible measurement error in the range, not more:
from 5 to 20 mm Hg - ±2 mm Hg;
from 20 to 60 mm Hg - ±10%
The time of a single measurement, s, not more: 3
Supply voltage, V: 3
Number of measurements using one battery set, not less: 1500
Service life, not less: 8
Weight, g: 89
Dimensions, mm, not more: 174 x 26 x 20

1. Safe Tonometry = No Risk of Infecting. No Contact with Mucous Membrane or Cornea (safer vs other contact or noncontact tonometers) Infection Prevention Tonometry Solution
2. Measure IOP THROUGH Eyelid and Sclera (No contact with eyeball or the cornea, IOP independent of CCT)
3. Quick, Puff-free & Painless (Perfect for children and squeamish adults)
4. No need for Sterilization (contact only with eyelid. Meets and Exceeds JCAHO Joint Commission Sterilization and Disinfection Standards)
5. Enables to Measure Accurate IOP even with Contact Lenses or with Scleral Lenses ON (Only with Diaton)
6. Can Accurately measure IOP in sitting or supine position. (no special set up or ophthalmic chair needed)
7. Social Distancing & Tonometry Compliance – Diaton user can stand on the Side of the patient vs in Front (at arm’s length, away from the line of breath or cough)
