Anterior Watson Jones -Total Hip Arthroplasty System
Instrument system specifically designed for Direct Anterior approach Total Hip Arthroplasty. Lighted retractors can be attached to a fiber optic light cable with ACMI (female) connector.
Product No`s:

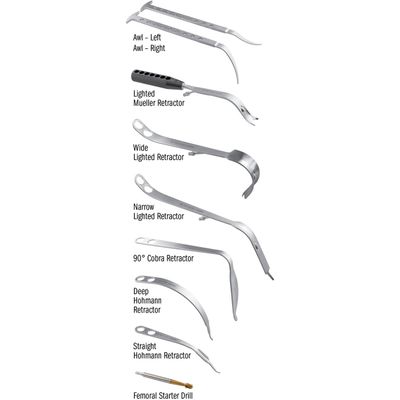

6300-00 [Complete Set]
Included in set or available individually:
6301-L [Anterior Watson Jones Awl – Left]
Overall Length: 12.375" (31,5 cm)
6301-R [Anterior Watson Jones Awl – Right]
Overall Length: 12.375” (31,5 cm)
6302-01 [Anterior Watson Jones Lighted Mueller Retractor]
Blade Width: 27 mm
Handle Length: 5.5" (14 cm)
Overall Length: 12.75" (32,4 cm)
6303-01 [Anterior Watson Jones Wide Lighted Retractor]
Blade Width: 40 mm
Blade Tip Length: 17 mm
Overall Length: 12.75” (32,4 cm)
6304-01 [Anterior Watson Jones Narrow Lighted Retractor]
Blade Width: 26 mm
Blade Tip Length: 23 mm
Overall Length: 16.5” (41,9 cm)
6305 [Anterior Watson Jones 90° Cobra Retractor]
Blade at Widest: 37 mm
Blade Depth: 7.5” (19,1 cm)
Blade Prong: 18 mm Long X 10 mm Wide
Overall Length: 12.5” (31,8 cm)
Handle Length: 9.5” (24,1 cm)
6306 [Anterior Watson Jones Deep Hohmann Retractor]
Blade Width: 17 mm
Prong Length: 34 mm
Overall Length: 9.25” (23,5 cm)
6307 [Anterior Watson Jones Straight Hohmann Retractor]
Prong Length: 4,2 cm
Overall Length: 9.5” (24,1 cm)
6308 [Anterior Watson Jones Femoral Starter Drill with Zimmer Hall Quick-connect]
Drill Tip Dimensions: 18 mm Long X 12 mm Diameter
Overall Length: 6” (15,2 cm)
Shaft Length: 5.25” (13,3 cm)
Optional quick-connect driver (not included in retractor set) for use with the starter drill:
8248 [Fixed Driver with Zimmer Hall Quick-connect]
Overall Length: 5.75" (15,6 cm)
Handle Width: 4.625" (11,6 cm)
