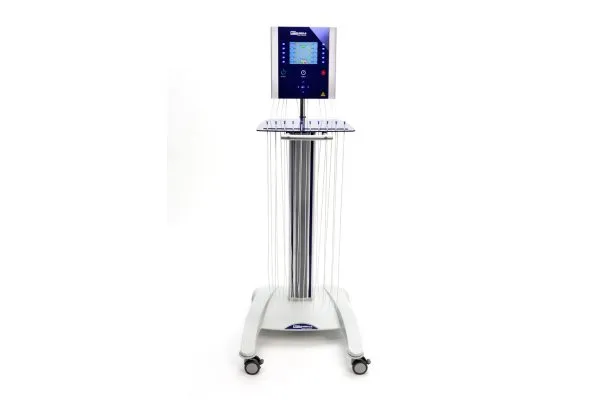

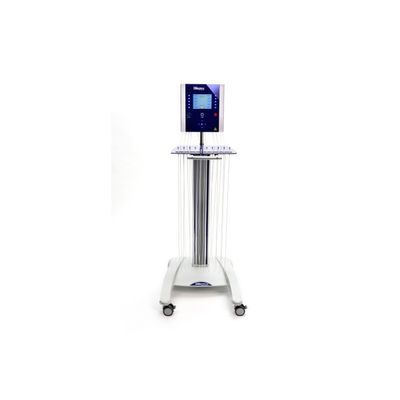

LASERNEEDLE -Touch OrthoPhys device
FromLaserneedle GmbH
The LASERNEEDLE Touch OrthoPhys comes with 5 red laser channels and 5 infrared laser channels. The infrared laser has a greater penetration depth than the red laser and therefore reaches deeper tissue layers. The combination of the two wavelengths is particularly efficient and recommended for the treatment of indications in orthopedics and sports medicine.
Most popular related searches
- Glass front with touchscreen
- Color display for visualization and adjustment of treatment parameters
- Individual control of each laser channel
- Storage space for 20 treatment protocols
- Multilingual intuitive interface (German, English, Portuguese, French)
- Non-wearing and easy to clean materials (glass surface)
- Own development, production, maintenance and service
- LASERNEEDLE Touch OrthoPhys with 5 red and 5 infrared laser channels
- 5 synthetical optical fibers and 5 quartz optical fibers (infrared channels)
- 20 silicon applicators
- Pack of perforated plaster (3 rolls)
- 20 self adhesive applicators
- 2 laser protection goggles
- Sample of LASERNEEDLE marketing materials
Laser classification:
- Class 3R
Number of laser channels (total of 10):
- 5 laser channels red = 658 nm
- 5 laser channels infrared = 808 nm
Optical fibers:
- 5 regular optical fibers, length 2,2m (for red channels)
- 5 quarz optical fibers, length 2,2m (for infrared channels)
Optical power (per channel):
- max 40mW
Operation modes:
- continuous mode (cw mode)
- modulation (frequency mode)
Modulation frequency:
- 0 – 10.000 Hz; 1 Hz resolution
Internal memory:
- 20 custom treatment protocols
Power supply:
- 100-240 V AC/ 50-60 Hz
