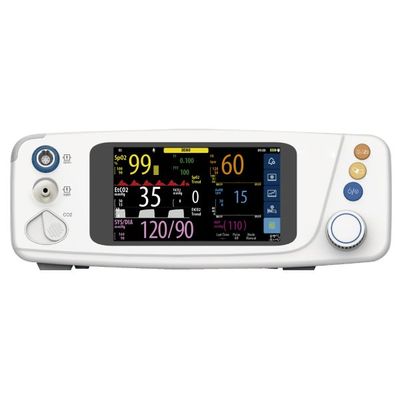

ZUG SpotLife - Touch Vital Signs Monitor
SpotLife® Touch Vital signs monitor has been designed to serve frontline caregivers in emergency, perioperative care and ICU/NICU departments. With its accurate oximetry adapted for adults as well as neonate, it provides a continuous and accurate monitoring of the SpO2 and PR even in case of low perfusion. SpotLife® VSM is declined in versions with either NIBP or CO2 measurement with optional fast temperature monitoring. Its handle and lightweight make it easy for transport use while its 4 stable feet allow a reliable use as bedside monitor. Cost effective, it remains a comprehensive device for multiple applications and environments. Equipped of a touch screen and a knob it is extremely easy and smooth to navigate through the menus and selection. Its 3 backlighted buttons for alarm, start/stop NIBP measurement and power are visible at anytime in any light condition.
- It is equiped with a 5′ TFT display and the display panel is inclined at 15°, which is convenient for doctors to view.
- 72-hour data storage , uninterrupted recording trend data, with dual alarm function of sound and light , alarm parameters
- RS232 serial port data transmission function.
- Multiple models, standard configuration SPO2, select configuration NIBP EtCO2.
- SPLF-NP: SPO2, NIBP
- SPLF-SI: SPO2, Internal Sidestream EtCO2
- SPLF-MC: SPO2, Mainstream EtCO2
- SPLF-OX: SPO2
- SPLF-NP-MC: SPO2, NIBP, Mainstream EtCO2
- SPLF-NP-SI, NIBP, Internal Sidestream EtCO2
Operation
- Temperature: -0? ~ 40C
- Humidity: 10% ~ 95%, non-condensing
- Atmospheric pressure: 70.0kPa ~ 106.0kPa
Storage
- Temperature: -20? ~ 60c
- Humidity: 10% ~ 95%, non-condensing
- Atmospheric pressure: 57.3kPa ~ 106.0kPa
Electrical Power Supply
- AC: 100 ~ 240V ± 10% (built-in adapter)
- Input power: 60VA
- Frequency: 50Hz/60Hz ± 3Hz
- One equipotential grounding interface
- Product Class: IIb (in accordance with MDD93 /42/ EEC)
Battery
- Built-in rechargeable lithium batteries: 11.1 V / 2400mAh
Mechanical
- Dimensions: 255*140*95mm (LxWxH)
- Weight: 1.5 kg (without accessories)
Connectlvlty
- USB interface
- RS232 interface
- Connected to central monitor via RJ45
- Bluetooth Printer
- Ethernet Port
HMI
- Optional : 6 models of configuration options
- Display: 5” Color TFT LCD, 800 x 480pixels
- Audio/Visual Indicators: Alarm limit reached, Alarm tone, Alarm mute, pulse
strength, Patient name, Patient Type, Time, battery status, connection status. - LEDs: Adult, Neonate, Pressure Unit or SpO2/PR (according to model), battery in
use, battery charging, silenced alarm. - User Interface language: English (additional language upon request)
Oximetry(All models):
- SPO2: Measurement Range: 0 – 100%, Accuracy Range: 70 – 100 %, ±2% < 70%, Undefined, Resolution: 1%
- Pulse Rate: Measurement Range: 25-250 bpm, Accuracy Range: ±2%, Resolution: 1 bpm
- PI: Measurement Range: 0-20%, Resolution: 0.001%
- PIV: Measurement Range: 0-100%, Accuracy Range: Undefined, Resolution: 1%
- Ethernet Port
NIBP(SPLF-NP model only)
- METHOD: Automatic oscillometric
- OPERATION MODES: Manual, Automatic, Continuous
- AUTOMATIC MODE MEASUREMENT INTERVAL: 1min/2min/3min/4min/5min/10min/15min/30min/60min/90min/2h/3h
- CONTINUOUS MODE MEASUREMENT PERIOD: 5mins, with 5s between each measurement
- MAXIMUM SINGLE MEASUREMENT TIME: 180s
- MEASUREMENT RANGE: Systolic BP: Adult mode: 40 ~ 270 mmHg, Pediatric mode: 40 ~ 200 mmHg,
Diastolic BP: Adult mode: 10 ~ 210 mmHg, Pediatric mode: 10 ~ 162 mmHg,
MAP: Adult mode: 20 ~ 230 mmHg, Pediatric mode: 20 ~ 175 mmHg
- ACCURACY: Mean error:
- STATIC PRESSURE MEASUREMENT RANGE: 0 mmHg (0kPa) ~ 300mmHg (39.9kPa)
- STATIC PRESSURE MEASUREMENT ACCURACY: ±2mmHg or ±1% of reading (Whichever is greater)
- RESOLUTION: 1 mmHg
- INITIAL INFLATION PRESSURE SETTING RANGE: Adult mode: 80 ~ 280 mmHg, Pediatric mode: 80 ~ 210 mmHg
- INITIAL INFLATION PRESSURE DEFAULT: Adult mode: 160 mmHg, Pediatric mode: 140 mmHg
- SOFTWARE OVER-PRESSURE PROTECTION: Adult mode: 297 ±3mmHg, Pediatric mode: 240 ±3mmHg
- ALARM RANGE: Systolic BP: Adult mode: 40 ~ 270 mmHg, Pediatric mode: 40 ~ 200 mmHg,
Diastolic BP: Adult mode: 10 ~ 210 mmHg, Pediatric mode: 10 ~ 162 mmHg,
MAP: Adult mode: 20 ~ 230 mmHg, Pediatric mode: 20 ~ 175 mmHg
Capnography
- METHOD: Infrared radiation absorption technology
- CO2 MEASUREMENT RANGE: 0 ~ 20 Vol%
- ACCURACY: 0 ~ 12 %: ± (0.2 Vol% + 2% of reading), 12 ~ 20 % : ± (0.2 Vol% + 6% of reading)
- MEASUREMENT ACCURACY DRIFT: accuracy requirements within 6 hours
- RESOLUTION: 0.1 Vol%
- ACCURACY: Mean error:
- APNEA ALARM DELAY TIME: 20s, 25s, 30s, 35s, 40s, 45s, 50s, 55s, 60s
- ALARM RANGE: EtCO2: 0 ~ 150mmHg, FiCO2: 0 ~ 150mmHg, awRR: 0 ~ 150rpm
Thermometry
- METHOD: Infrared non-contact forefront measurement
- TEMP MEASUREMENT RANGE: 34 ~ 42.9 °C
- ACCURACY: 34.0 ~ 34.9 °C ± 0.3 °C, 35.0 ~ 42.0 °C ± 0.2 °C, 42.1 ~ 42.9 °C ± 0.3 °C
- RESOLUTION: 0.1 °C
- ALARM RANGE: 34 ~ 42 °C
