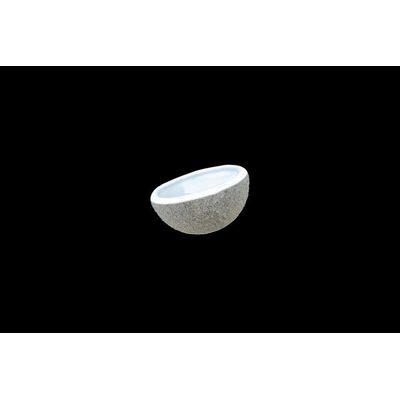

TPS Coating on Ceramic
FromDOT GmbH
A porous TPS coating is applied on the implants using a vacuum plasma spray process to modify the surface of ceramic implants and thus to make the surface attractive for improved osseointegration.
Most popular related searches
orthopedic implant
implant component
implant materials
implant material
implant
biocompatibie
osseointegration
orthopedic
implant applicator
implant application
- Orthopedic implants and implant components made from ceramic
- Surface enlargement without thermal microstructural changes of the implant material
- Improved fatigue strength of the implants compared with sintering techniques
- Increased purity and adhesive strength compared with other methods (e.g. APS Atmospheric Plasma Spray)
- Color: gray
- Coating thickness: 50–300 µm
- Roughness Ra: 30–60 µm
- Porosity: 20–40 %
- Adhesion strength: ≥ 22 MPa
- Biocompatible
- Coating material: Titanium powder - pure titanium grade 4 (in accordance with ISO 5832-2 and ASTM F 1580 as well as titanium alloys in acordance with ISO 5832-3)
