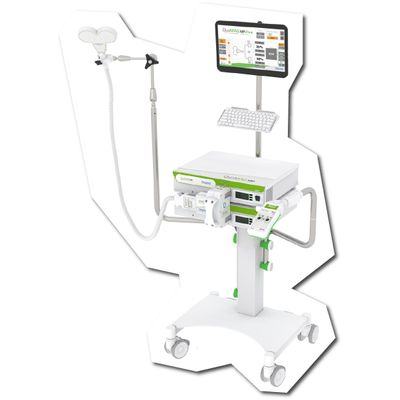

Brainbox -Model DuoMAG MP-Dual -Transcranial Magnetic Stimulation (TMS) System
The DuoMAG MP-Dual Paired Pulse TMS combines two DuoMAG MP TMS stimulators to provide a fully configurable paired pulse TMS system.
Delivering repeated pairs of monophasic pulses to two cortical regions over short periods has become a very popular method of exploring intra-cortical circuits in the human brain. ‘Paired Pulse’ stimulation is a method achieved by delivering two monophasic pulses in very quick succession.
By pairing two DuoMAG MP stimulators through an intelligent combining module, the DuoMAG MP-Dual offers unrivalled performance and flexibility for the application of both paired pulse and twin coil stimulation. A combining module also allows for both stimulators to be split into two DuoMAG MP units. The native DuoMAG software enables the system to be used in three separate modes - Pair, where the stimulators operate as primary and secondary stimulators with one triggering the other at a defined interval either through one or two coils; Independent, where both stimulators can be operated separately of each other, again, through one or two coils, and Dual, where the output of both stimulators can be combined through a single coil to deliver a pulse equivalent of 134% of a single DuoMAG MP.
The quick recharge rate of the DuoMAG capacitor allows for a maximum frequency rate of 4Hz and 1Hz stimulation at 95% stimulator output. Additionally, it is possible to define a capacitor ‘recharge delay’ for applications where ppTMS is combined with EEG recording to allow for a period of ‘clean’ EEG shortly after the delivery of the TMS pulse.
USB and TTL connections on the reverse of the stimulator module allow for novel programmes such as QTrac or C.E.D’s Signal software to control the device externally.
- Pulse mode: Monophasic: single pulse, paired pulse and dual pulse
- Max repetition rate at 100%: 1.0Hz (single pulse) / 0.5Hz (paired pulse)
- Max repetition rate at 50%: 2.8Hz (single pulse) / 1.4Hz (paired pulse)
- Max repetition rate: 4.0Hz (single pulse) / 2.0Hz (paired pulses)
- Inter stimulus interval (ISI): 0.5-600.0ms (internal control) / ≥ 1.0ms (external control)
- Pulse width (rise/decay): 100, 120µs / 1.0, 1.2ms
- Coil connections: up to 2
- Synchronisation: TTL in/out, via BNC; USB 2.0
- Communication: USB or coil controls
- Power supply: 2 x (100-240Vac 50/60Hz)
- Dimensions: 2 x (49cm x 19cm x 38cm)
- Weight: 29kg
- Graphical user interface: Optional
- Trolley with coil holder: Optional
- Upgrade options: MP-Quad, for quadripulse stimulation and low-frequency rTMS
EMG module (optional)
- EMG channels: 2 or 4, bipolar
- Notch filter: 50Hz and 60Hz (selectable)
- Sampling rate: 3kHz
- Peak-to-peak amplitude measurement: Automatic
- Latency measurement: Manual
- Motor threshold tools: Resting (RMT); Active (AMT)
PAIRED, INDEPENDENT, AND DUAL-STIM MODES
The propriety DuoMAG MP-Dual software allows the user to use the device in three different stimulation modes:
Paired Mode
Conventional paired pulse where Stimulator 1 triggers stimulator 2 with a defined ISI.
Independent ModeWhere the user can individually set the intensities of, and trigger, all connected stimulators independently of one another.
Dual-Stim ModeWhere both stimulators combine to deliver a pulse with the equivalent of 135% the power of a single stimulator. Each of these modes can be configured with single or twin coil set-ups to support interhemispheric (bilateral) stimulation.
NUMEROUS INTERFACE OPTIONS
CONFIGURABLE PULSE PARAMETERS
EASILY CONTROLLABLE
HIGH STIMULATOR OUTPUT
CE-CERTIFIED
The DuoMAG MP system is a CE-certified medical device for non-invasive brain stimulation in humans. It is limited to investigational and research use in the USA.
