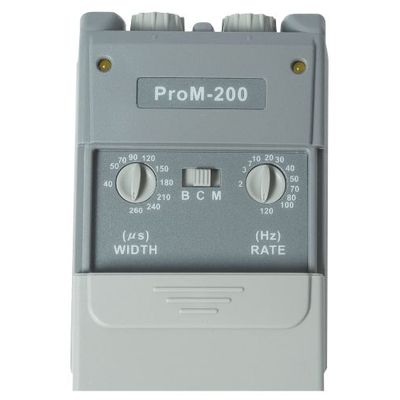

ProMed - Model ProM-200 - Transcutaneous Nerve Stimulator
Dual channel. 3 Modes: Continuous, Modulate and Burst. System Includes: Stimulator; Lead Wires. 4 Self-Adhesive Reuseable Electrodes. 9 Volt Battery. Hard Plastic Carrying Case. Instruction Booklet.
Most popular related searches
nerve stimulation
electrical nerve stimulation
tens unit
electrotherapy system
electrotherapy unit
electrotherapy
- Channels: Dual, isolated between channels
- Wave Form: Asymmetrical Bi-phasic square pulse
- Pulse Amplitude: Adjustable 0-80mA peak into 500 ohm load each
- channel, constant current
- Pulse Frequency: 2Hz-120Hz adjustable
- Pulse Width: 40µs - 260µs adjustable
- Function Modes:
- Cycle Bursts, 2Bursts/sec, 9pulses/Burst, 100Hz, width is adjustable
- Continuous mode. Pulse rate, pulse width and intensity are adjustable
- Modulated Width. Pulse width is automatically varied in an interval of 6 seconds. The modulation range of pulse width is from setting value to 35% less than the control setting value, then returns to the setting value. Rate, width and intensity are fully adjustable
- Maximum charge: 21 micro coulombs per pulse
- Power source: 9 volt alkaline battery or similar rechargeable cell
- Battery Life: 70 hours average usage (alkaline)
- Size: 95 mm(H) 61.5mm(W) 26m(T)
- Weight: Approx. 120grams (battery included)
