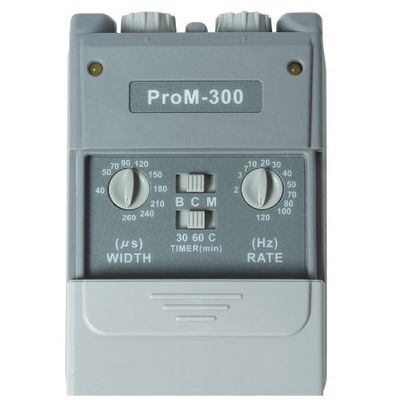

ProMed -Model ProM-300 -Transcutaneous Nerve Stimulator
Dual channel. Continuous, modulate and burst. Timer: 30 minutes, 60 minutes and continuous.
Most popular related searches
nerve stimulation
electrical nerve stimulation
tens unit
electrotherapy system
electrotherapy unit
electrotherapy
System Includes:
- Stimulator
- Lead Wires
- 4 Self-Adhesive Reuseable Electrodes
- 9 Volt Battery
- Hard Plastic Carrying case
- Instruction Booklet
- Channels: Dual, isolated between channels
- Wave Form: Asymmetrical Bi-phasic square pulse
- Pulse Amplitude: Adjustable 0-80mA peak into 500 ohm load
- each channel, constant current
- Pulse Frequency: 2Hz-120Hz adjustable
- Pulse Width: 40μs - 260μs adjustable
- Function Modes:
- B: Cycle Bursts, 2 Bursts/sec, 9 pulses/Burst, 100Hz, width is adjustable.
- C: Continuous mode. Pulse rate, pulse width and intensity are adjustable.
- M: Modulated Width. Pulse width is automatically varied in an interval of 6 seconds.
- The modulation range of pulse width is from
- setting value to 35% less than the control setting
- value, then returns to the setting value. Rate,
- width and intensity are fully adjustable.
- Timer: 30, 60 minute and continuous mode selectable
- Maximum Charge: 21 micro coulombs per pulse
- Power Source: 9 volt alkaline battery or similar rechargeable cell
- Battery Life: 70 hours average usage (alkaline)
- Size: 95 mm(H) 61.5mm(W) 26m(T)
- Weight: Approx. 120grams (battery included)
- All values have 10% +/- tolerance
