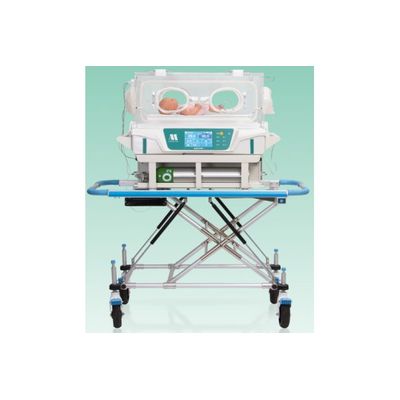

MEDICOR BabyLife - Model BLF-2001T - Transport Incubator
FromMEDICOR Zrt
Main body includes the hood, controller, bassinet, internal battery and observation lamp, skin temperature sensor, IV pole, mattress, adjustable stand
Most popular related searches
skin temperature
iv pole
ambulance trolley
neonatal ventilators
neonate ventilation
ambulance aircraft
neonatal ventilator
neonatal ventilation
transport incubator
iv access
- Air mode (temperature range: 25–37ºC, in override mode 37–38ºC) and Skin mode (temperature range: 34–37ºC, in override mode 37–37.5ºC) controlled by micro-computer;
- Power supply AC230V/50Hz and DC12V/10A or DC24V/6A alternatively.
- Input power: 400VA;
- Set temperature, air temperature, skin temperature and internal battery voltage can be displayed separately;
- Failure alarm indication: over-temperature, temperature deviation, sensor, motor fan failure, power failure;
- Double wall acrylic glass hood with side door, the bassinet can be pulled out;
- Natural air flow humidity;
- The height of complete unit can be adjusted;
- Oxygen cylinder and oxygen supply configuration;
- Observation lamp
- HEPA Air filter
- > 37ºC override temperature control mode
- Reusable / Disposable skin temperature sensor
- Oxygen cylinders with supply system
- Additional battery for longer operation
- Ambulance trolley
- PIP and PEEP controlled resuscitator
- O2/air blender
- Neonatal ventilator (only with ambulance trolly)
- Suction unit (only with ambulance trolly)
- Syringe pump (only with ambulance trolly)
- Ambulance aircraft base (custom design)
- Air temperature servo control w/ override (25-37 oC)
- Skin temperature servo control w/ override (34-37 oC)
- Humidity pad (450 ml)
- Glass-like transparent double wall hood
- Hood with front & side access door
- Hood with 2 noiseless, easy-to-open hand ports / windows
- Hood with 1 iris ports / windows
- Hood with 6 tube ports
- Drawable cradle with foam mattress
- Fixing straps
- Heavy duty stand with 4 castors (2 lockable, 3 height level, 95 - 132 cm)
- Gas cylinder holder (2 pcs)
- IV pole
- HEPA air filter
- Water resistant, foil-covered keypad with lock
- LED display for heating level/power/mode/lock/alarm
- 3 digit LED display for air/skin/battery and set
- Display of heating intensity
- Microprocessor controller
- Mains /Ambulance power cord
- Battery for 90 min operation time
- Visual and audible alarms and backup sensors
- Continuous self-test function during operation
- 110-120/220-230V/50-60Hz, 12V, 24V
- PHYSICAL ATTRIBUTES (STANDARD VERSION)
- Incubator body
- Height / Packing : 56/75 cm (22/30 in)
- Width / Packing : 96/109 cm (38/43 in)
- Depth / Packing : 56/65 cm (22/26 in)
- Weight / Packing : 65/80 kg (143/176 lbs)
- Standard trolley
- Height / Packing : 95-132/39 cm (37-52/15 in)
- Width / Packing : 133/138 cm (52/54 in)
- Depth / Packing : 54/61 cm (21/24 in)
- Weight / Packing : 37/45 kg (82/99 lbs)
- Ambulance trolley
- Height / Packing : 95-140/41 cm (37-55/16 in)
- Width / Packing : 192/210 cm (76/83 in)
- Depth / Packing : 54/28 cm (21/11 in)
- Weight / Packing : 43/67 kg (95/148 lbs)
- Mains voltage : 220/230V ±10% (default), 110/120V ±10% (upon request), 12V/10 Ah, 24V/6 Ah (Ambulance)
- Nominal frequency : 50/60Hz
- Nominal power consumption : 400VA
- Number of batteries : 1 pce (2 pcs as option)
- Working time of battery : 90 min
- Number of battery charge cycles : max. 200
- Charging voltage of battery : 12V/26AH
- Dimension of battery : 17x16x13 cm (7x6x5 in)
- Weight of battery : 9 kg
- Operating ambient temperature range : +10°C–+30°C (50°F–86°F)
- Storage/transport ambient temperature range : -40°C–70°C (-40°F–158°F)
- Operating (Storage) ambient RH range : 30%–75% (0%–93%)
- Operating (Storage) air pressure range : 800 hPa–1060 hPa (500 hPa–1060 hPa)
- HOOD / IV POLE SPECIFICATIONS
- Access door opening height : 23 cm (9 in)
- Mattress tray size : 35 x 63 cm (14 x 25 in)
- Mattress to hood height : 26 cm (10 in)
- Mattress size : 30 x 60 cm (12 x 24 in)
- Load of cradle : max. 10 kg
- Load of IV pole : max. 2 kg
- TEMPERATURE CONTROL MODES
- Temperature control modes : Air (standard) / Skin (option)
- Temperature display range : (Air/Skin mode) 5.0°C (41.0°F) to 65.0°C (149.0°F)
- Air mode control temperature range : 25.0°C (77.0°F) to 37.0°C (98.6°F), in 0.1°C increments
- Air mode control override temperature range : 37.0°C (98.6°F) to 38.0°C (100.4°F), in 0.1°C increments
- Skin mode control temperature range : 34.0°C (93.2°F) to 37.0°C (98.6°F), in 0.1°C increments
- Skin mode control override temperature range : 37.0°C (96.8°F) to 37.5°C (99.5°F), in 0.1°C incr
- PERFORMANCE
- Air flow velocity across mattress : under 30 cm/sec
- Temperature rise time : 22°C (72°F) ambient < 30 min
- Temperature variability : under 1°C (1.8°F)
- Temperature uniformity on the surface of the mattress : under 1.5°C (2.7°F)
- Correlation of the indicated air temperature with the actual incubator temperature : ≤ 1.5°C (2.7°F)
- Operating noise level in hood : under 50 dBA
- Carbon Dioxide (CO2) level (per EN60601-2-19) : under 0,5%
- Micro air intake filter : HEPA
- DEVICE CLASSIFICATION
- Protection class : Class I, Type BF, continuous operation
- Ingress of liquids : IPX0
- ALARMS : Power Failure Alarm, Fan Motor Alarm, Sensor Failure Alarm, Overheat Alarm, Deviation Alarm, Low Voltage Alarm, System Alarm
