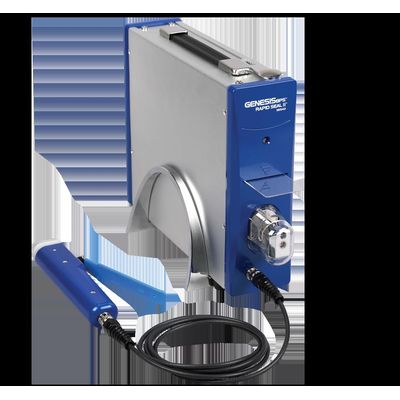

Genesis - Model SE 540 - Tube Sealer Rapid Seal

Product: Tube Sealer Rapid Seal SE 540
Model#: SE 540
Catalog#: 428-SE540

• Custom sealer stand
• Link bars – adjust segment size
• Connection cable

Genesis ensures a very high standard of manufacturing quality, and goes even further by meeting ISO standards to establish quality recognized around the world.

Product Overview

• Slim design to maximize available space
• Flexible multi-head option
• Notched Seal™ for easy separation
• Fixed sealing head and hand-held sealing unit
• Designed for medium duty sealing
• RAPID SEAL II™ seals in 0.5 to 1.2 seconds
• “Intelligent” RF Board – accepts and adjusts to all size blood tubing
• CE and UL compliant
• 1 year limited warranty

Special Features

• 6` standard RF cable
• Custom sealer stand
• Splash guard
• Easy to clean head protector

Multi-Head Configurations
The 530 & 540 Tube Sealers can be used independently or linked as a multi-head sealing unit with flexible head spacing (75 / 80 / 85 / 90 mm).

Link 3, 4, 5, 6 or more units together.

Model #: SE 540
Sealing Head Configuration:  Fixed sealing head
Dimensions: 6.9"W x 6.1"H x 13"D
176mm W x 156mm H x 331mm D
Weight: 11.0 lbs
5.0 Kg
Power Type: A/C
Power Source: A/C 100-240V
50/60 Hz
Max Tubing Diameter: 6 mm (1/4”)
