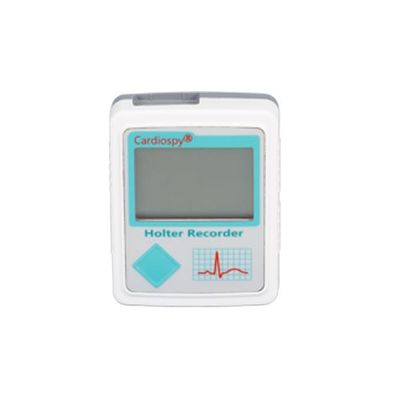

Labtech -Model EC-2H -Two-Channel, Full Disclosure Holter Recorder

• Parameters: EC-2H
• Bipolar ECG Channels: 1, 2
• Other ECG Channels:
• Respiration:
• Patient cables for recording: 1 and 2 channels
• Number of snap type Leads: 3,5
• Recording duration maximum (without battery changing): 48h
• The battery can be changed during recording: Yes
• Recording duration maximum (with battery changing): 336h
• Dynamic Bandwidth: ±20 mV
• DC Offset Range: ±600 mV
• Frequency Response maximum: 0.05 Hz … 150Hz
• Sampling Rate: 125 Hz, 250 Hz, 500 Hz, 1000 Hz
• Recording Rate: 125 Hz, 250 Hz, 500 Hz, 1000 Hz
• Common Mode Rejection Ratio: 120dB
• A/D Resolution: 16 bit
• Input impedance: >100 MΩ
• Power Source: 1x1.2 V AAA NiMH battery (or 1x1.5 V AAA alkaline battery)
• Battery Life: min. 24 h, up to 48 h using a high-capacity battery
• Storage Card Capacity: built-in 2GB (microSD)
• Internal Voltage (max):    3.3 V
• Display: LCD (Grey Scale 160x100 pixels)
• Movement detection-3D: Yes
• Patient Event button: Yes
• Monitoring ECG:    On PC via Bluetooth and on LCD as well
• Reading Record: via USB cable
• International Protection Rating Against Water:    IPX0
• Size: 53 x 67.5 x 18.5 mm
• Weight: ~ 50 g

Two-channel, full disclosure Holter Recorder for an earlier purchased Holter System. With Labtech EC-2H Holter ECG Recorder you can make 1, 2 channel recordings depending on the recorder and patient cable type being used.
