OR Technology - Model Amadeo S Motorised - U-arm X-ray Machine
Motorised digital U-arm X-ray machine for all applications in diagnostic radiography

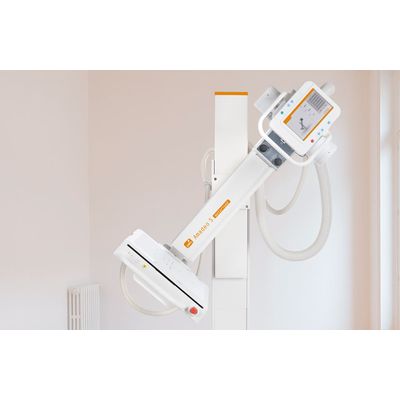

The Amadeo S motorised is a motorised U-arm X-ray machine for the production of all diagnostic projection radiography images. Both its compact design and the minimum ceiling height of only 2.40 m make the system perfectly suited for small rooms. It includes all necessary components and functions for digital X-ray without cassettes: motorised U-arm system, generator, X-ray detector, PC and the dicomPACS®DX-R acquisition and diagnostic software.
The very flexible and partially motorised positioning of the stand allows a wide range of images to be acquired. These can be taken on sitting, standing or lying patients (table optional). All important settings and operating operations are performed via an integrated 10" touchscreen display console.
Both bucky tray and tube can be rotated and thus allow very variable X-ray settings. All necessary device positions can be pre-defined on the 60 available program slots to ensure quick positioning on the patient.
The high-resolution, digital CsI X-ray detector and the removable grid ensure best image quality for all images. Intelligent collision sensors ensure patient protection by interrupting the movement in case of possible patient contact or contact with objects in the X-ray room. Features such as stitching to create whole leg and whole spine images, child filters etc. complete the advantages of this system.
The Amadeo S motorised is controlled by our powerful X-ray acquisition software dicomPACS®DX-R. The software enables a very simple and intuitive operation and the automatic setting of all necessary parameters.
Two versions of the Amadeo S motorised U-arm X-ray system are available:
Amadeo S-DR motorised:
With a built-in X-ray detector (43 cm x 43 cm)
Amadeo S-DR motorised:
with a wireless X-ray detector (35 cm x 43 cm)
Optimal
designed especially for small rooms (min. W/H/D 2.30 x 2.40 x 1.70 m) - guaranteed through compact design and collision sensors for room height and detector position for recordings on standing, sitting and lying patients
Convenient
easy manual positioning in all directions, including detector tilt for oblique projections - allows comfortable working
Simple
60 preset positions for stand height, orientation and SID for each examination type
Comfortable
through automatic tripod positioning, motorised adjustment of the shooting specific film focus distance and customised anatomical programming (APR)
Efficient
Quick and easy positioning of the tripod --> detector +/-40° rotatable and tube +/-90°, partly motorised
Safe
integrated safety functions with emergency stop buttons and collision sensors
Sophisticated
control of the high-frequency generator and all system components via integrated 10" touch screen display console with multilingual support
Excellent
high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses
User-friendly
self-explanatory OR Technology acquisition software dicomPACS®DX-R including free special measurement functions
Fast
shortly after taking the shot (6 - 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation
Cleverly designed
integrated X-ray positioning guide helps choose the perfect positioning
Accessibility
integrated diagnostic software offers a worldwide, fast and cost-effective exchange of information (via cloud or email)
Stitching
The stitching module (optional) creates a single image from separate digital X-ray images. The images are loaded, correctly alignedand merged to one image.
