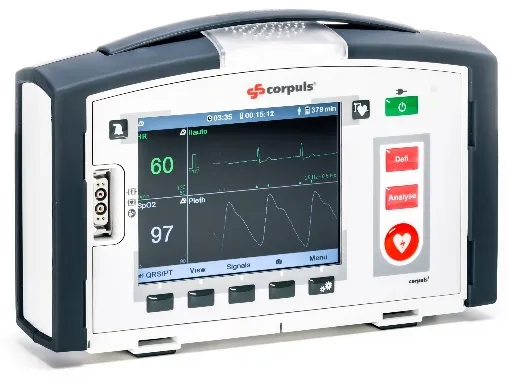

Model CORPULS1 -Ultra-Compact Patient Monitor And Defibrillator
Small, light and compact but with the power of its big brother corpuls3. The corpuls1 was specially developed for the requirements of the fire brigade, first responders, in transport ambulances, doctors` offices and in disaster control. An extremely compact but full-fledged defibrillator/patient monitor that is always used when size does matter.
- Dust and water jet protected according to IP55
- Vibration and impact-tested according to DIN EN 1789
- Alarm indicator, loudspeaker
- Voice recording
- Lithium-ion battery
- 12 V DC power supply, 100 to 250 V AC with mains adapter
- Data management via SD® memory card
Weight
2.2 kg
Basic equipment incl. battery
-20 °C to +55 °C
Basic functions: ECG monitoring, defibrillation
Dimensions
17 cm (L) × 26 cm (W) × 7 cm (D)
- Automated external defibrillator (AED)
- Manual defibrillator
- Cardio version
- Pacemaker with 2 modes (FIX, DEMAND) (optional)
- 5.7" colour display, backlit
- Display of up to 3 curves and up to 4 vital parameters
- 6-channel ECG
- Masimo® Rainbow® SET for SpO2, PP, PI, SpCO, SpMet, and SpHb (optional)
Up to 3 curves and 4 vital parameters at a glance on the 5.7" display. The same intuitive user interface as that of the corpuls3 ensures easy operation. Always in view: ECG, heart frequency and pulse oximetry.
Depending on the application, you can use the corpuls1 as an automated external defibrillator (AED) or as a manual defibrillator.
The corpuls1 optionally features an integrated defibrillator with FIX/DEMAND modi for the treatment of arrhythmia.
The integrated pulse oximeter (optional) allows monitoring of the oxygen saturation, pulse frequency and plethysmogram.
Seconds count when responding to an emergency call. This is why we made sure that the transfer of the patient from the first responder to the emergency service for further treatment takes place as fast and smooth as possible. Just like with all corpuls defibrillators, the electrodes, sensors and cables of the corpuls1 can also be used with the corpuls3.
Not only the patient`s life is at stake during an emergency call - the rescuers themselves must also be protected. This is why the corpuls1 is optimally equipped with SpCO measurement. Possible carbon monoxide poisoning can be easily detected at an early stage, for example in fire fighters after a fire fight,
