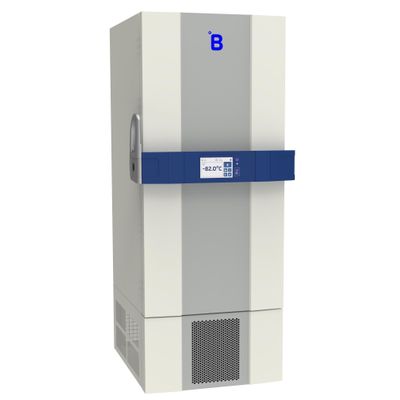

B-Medical Systems -Model U501 -Ultra-Low Medical Freezer
Ultra-Low Freezer with 602 L | 21.26 cu ft storage capacity.
Most popular related searches
- Set Temperature: - 82°C
- Climate class (ambient temperature range): +10°C to +43°C
- Alarm limits: - 87°C | - 77°C
- External dimensions (HxWxD): 1988 x 845 x 1039 mm | 78.27 x 33.27 x 40.91 in
- Refrigerant Type: Natural R290 / R170
- Adjustable set point from -86°C to -20°C

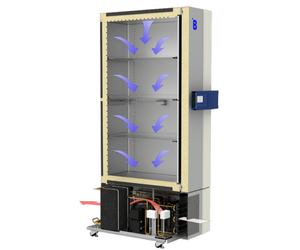

- Uniform and stable temperature distribution
- Fast temperature recovery after door opening
- Extended holdover time in case of power failure and optional CO2 backup
- Audio-visual alarm system with remote transmission via SMS or email
- Coalescing oil separator reducing the oil blockage problems and risk of compressor failure
- °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving
- Natural refrigerants with high cooling efficiency in conformity with US SNAP and EU F-Gas regulations
- Insulated inner doors, sealed gaskets, enhanced frame for minimized cold air loss and frost build-up
- High-quality stainless steel cabinets with antibacterial coating and injected with thin polyurethane foam providing high thermal insulation and storage capacity
- 7” touchscreen with temperature display easily accessible in the bar
- Password protected/NFC card based door locking mechanism
- USB port and SD card slot for easy export of data
- Antibacterial coating for easy hygiene control
- Modular interior equipment
- Easy access to all levels
- High-quality stainless steel and other materials for an extended life span
- Gross volume: 634 L | 22.39 cu ft
- Storage Capacity: 602 L | 21.26 cu ft
- Cryoboxes capacity: 460
- 2ml Vials Storage Capacity: 46000
- Set Temperature: – 82°C
- Setting range: – 86°C to -20°C
- Alarm limits: – 87°C | – 77°C
- Climate class (ambient temperature range): +10°C to +43°C
- Certifications: cCSAus | EU MDR Class IIa | ISO 14644-1 | Class 5 | US FDA Class II
- Cooling technology: Static cooling
- External dimensions (HxWxD): 1988 x 845 x 1039 mm | 78.27 x 33.27 x 40.91 in
- Internal dimensions (HxWxD): 1375 x 593 x 738 mm | 54.13 x 23.35 x 29.05 in
- Net weight: 276 kg | 608.48 lb
- Frequency: 50 Hz
- Supply voltage: 230V
- Energy consumption: 11.3 kWh/24h
- Noise level: 52 dB
- Refrigerant Type: Natural R290 / R170
- Heat emission: 404 Kcal/h
- Materials: Stainless steel
- Display: 7" touchscreen screen
- Remote monitoring: °B Connected software | RTMD included
- Hold over time: 2.7 h (-80°C to -60°C)
- Defrosting technique: Manual
- Access control: Password or badge
- Data export: SD card | USB port
- Product Type: Ultra-Low Freezer
