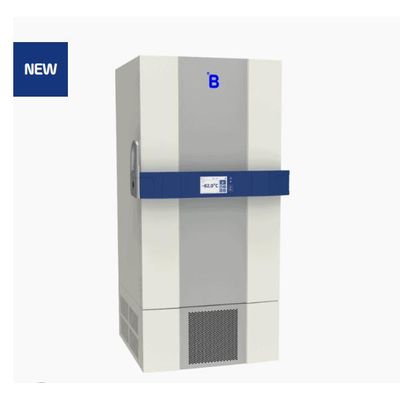

B-Medical Systems -Model U701V -Ultra-Low Medical Freezer
Ultra-Low Freezer with 751 L | 26.52 cu ft storage capacity.
Most popular related searches
- Adjustable set point from -86°C to -20°C
- Uniform and stable temperature distribution
- Superior Door Opening Recovery (DOR) even during intensive use
- Extended holdover time in case of power failure and optional CO2 backup
- Audio-visual alarm system with remote transmission via SMS or email
- Coalescing oil separator reducing the oil blockage problems and risk of compressor failure

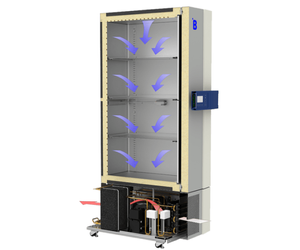

- Unique evaporator technology ensures even cold air distribution and eliminates oil clogging
- °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving
- Superior energy efficiency delivered using innovative variable speed technology
- Natural refrigerants with high cooling efficiency in conformity with US SNAP and EU F-Gas regulations
- Magnetic gasketed inner doors, enhanced VIP panels for minimized cold air loss and frost build-up
- High-quality stainless steel cabinets with antibacterial coating and injected with thin polyurethane foam providing high thermal insulation and storage capacity
- 7” touchscreen with temperature display easily accessible in the bar
- Password protected/NFC card based door locking mechanism
- USB port and SD card slot for easy export of data
- Antibacterial coating for easy hygiene control
- Modular interior equipment
- Easy access to all levels
- High-quality stainless steel and other materials for an extended life span
- Gross volume: 791 L | 27.93 cu ft
- Storage Capacity: 751 L | 26.52 cu ft
- Cryoboxes capacity: 575
- 2ml Vials Storage Capacity: 57500
- Set Temperature: -80°C
- Temperature range: -86°C to -20°C
- Alarm limits: -85°C | -75°C
- Climate class (ambient temperature range): +10°C to +43°C
- Certifications: EU MDR Class IIa
- Cooling technology: Static cooling with variable speed compressors
- External dimensions (HxWxD): 1988 x 992 x 1039 mm | 78.27 x 39.06 x 40.91 in
- Internal dimensions (HxWxD): 1375 x 740 x 738 mm | 54.13 x 29.13 x 29.05 in
- Net weight: 298 kg | 657 lb
- Frequency: 50-60 Hz
- Supply voltage: 220-240V
- Energy consumption: 7.5 kWh/24h at -80°C | 6.3 kWh/24h at -70°C
- Refrigerant Type: Natural R290 / R170
- Heat emission: 360 W
- Materials: Stainless steel
- Display: 7" touchscreen screen
- Remote monitoring: Optional °B Connected software via data communication unit
- Hold over time: 1.7 h (-80°C to -60°C)
- Defrosting technique: Manual
- Access control: Password or badge
- Data export: SD card | USB port
- Product Type: Ultra-Low Freezer
- Set Temperature: -80°C
- Climate class (ambient temperature range): +10°C to +43°C
- Alarm limits: -85°C | -75°C
- External dimensions (HxWxD): 1988 x 992 x 1039 mm | 78.27 x 39.06 x 40.91 in
- Refrigerant Type: Natural R290 / R170
