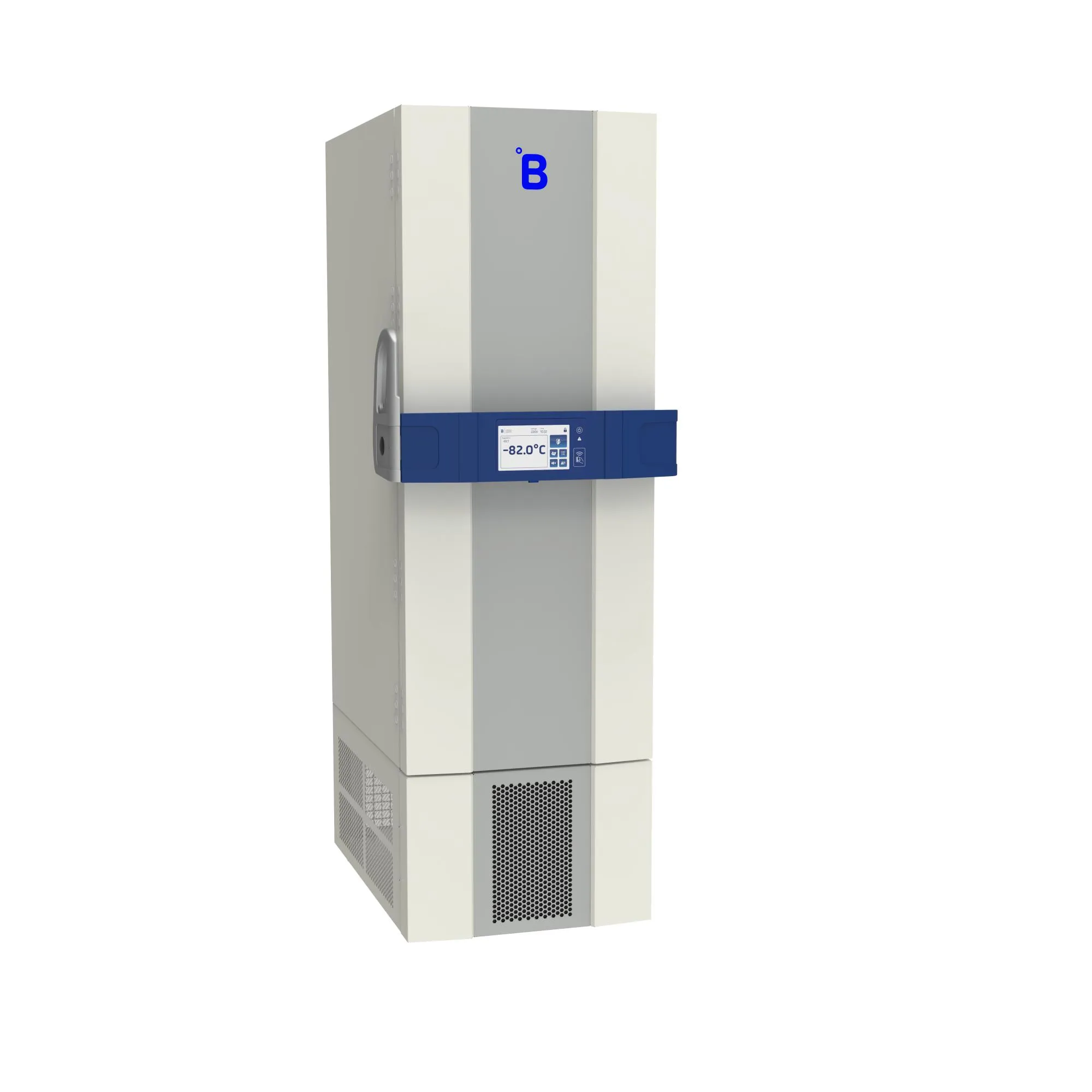

B Medical Systems -Model U401 -Ultra-Low Vaccine Freezer
Ultra-Low Freezer with 454 L | 16.03 cu ft storage capacity.
Most popular related searches
- Set Temperature: - 82°C
- Climate class (ambient temperature range): +10°C to +43°C
- Alarm limits: - 87°C | - 77°C
- External dimensions (HxWxD): 1988x 699 x 1039 mm | 78.27x 27.52 x 40.91 in
- Refrigerant Type: Natural R290 / R170
- Gross volume: 478 L | 16.88 cu ft
- Storage Capacity: 454 L | 16.03 cu ft
- Cryoboxes capacity: 345
- 2ml Vials Storage Capacity: 34500
- Set Temperature: – 82°C
- Setting range: – 86°C to -20°C
- Alarm limits: – 87°C | – 77°C
- Climate class (ambient temperature range): +10°C to +43°C
- Certifications: cCSAus | EU MDR Class IIa | GMP A | ISO 5/EC | US FDA Class II
- Cooling technology: Static cooling
- External dimensions (HxWxD): 1988x 699 x 1039 mm | 78.27x 27.52 x 40.91 in
- Internal dimensions (HxWxD): 1375 x 447 x 738 mm | 54.13 x 17.60 x 29.05 in
- Net weight: 250 kg | 551.16 lb
- Frequency: 50 Hz
- Supply voltage: 230V
- Energy consumption: 11 kWh/24h
- Noise level: 46 dB
- Refrigerant Type: Natural R290 / R170
- Heat emission: 326 Kcal
- Materials: Stainless steel
- Display: 7" touchscreen screen
- Remote monitoring: °B Connected software | RTMD included
- Hold over time: 1 h 18 min (-82°C to -60°C)
- Defrosting technique: Manual
- Access control: Password or badge
- Data export: SD card | USB port
- Product Type: Ultra-Low Freezer
- Adjustable set point from -86°C to -20°C
- Uniform and stable temperature distribution
- Fast temperature recovery after door opening
- Extended holdover time in case of power failure and optional CO2 backup
- Audio-visual alarm system with remote transmission via SMS or email
- Coalescing oil separator reducing the oil blockage problems and risk of compressor failure
- °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving
- Natural refrigerants with high cooling efficiency in conformity with US SNAP and EU F-Gas regulations
- Insulated inner doors, sealed gaskets, enhanced frame for minimized cold air loss and frost build-up
- High-quality stainless steel cabinets with antibacterial coating and injected with thin polyurethane foam providing high thermal insulation and storage capacity
- 7” touchscreen with temperature display easily accessible in the bar
- Password protected/NFC card based door locking mechanism
- USB port and SD card slot for easy export of data
- Antibacterial coating for easy hygiene control
- Modular interior equipment
- Easy access to all levels
- High-quality stainless steel and other materials for an extended life span
