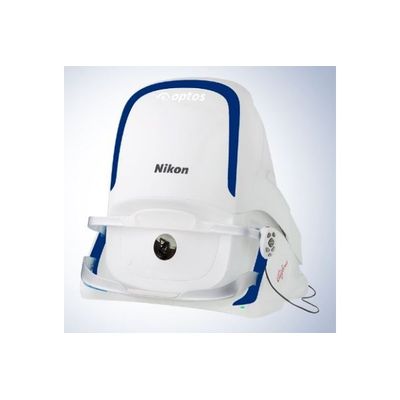

Optos CaliforniaRg - Ultra-widefield Imaging Device

In addition to the benefits found with all of the UWF devices from Optos such as 200 degrees or up to 82% of the retina captured in a single image, in multiple modalities, as well as eyecare professionals being able to see 50% more of the retina when compared to other conventional imaging devices, California rg, offers the following benefits:

• Motorized head and chin rest to more easily assist those patients requiring additional assistance during imaging
• Multiple imaging modalities including; 3-in-1 color depth imaging (color, red-free and choroidal in a single image) as well as Autofluorescence

• Image Modalities :
• optomap color and optomap plus (red and green laser):
•  Color composite view
•  Green laser view
•  Red laser view
• optomap af (green laser): autofluorescence
• Resolution :
• optomap color: 20 μm
• optomap plus, af : 14 μm
• Wavelengths :
• Red laser: 635 nm
• Green laser: 532 nm
• Exposure Time : Less than 0.4 seconds
• Footprint :
• Width: 550 mm / 22 inches
• Depth: 550 mm / 22 inches including chinrest
• Height: 608-632 mm / 24-25 inches
• Weight : 34 kg/ 75 lbs
• Laser Class :
• Laser safety Class-1 following IEC/EN60825-1:2007
• and 21 CFR1040.10 and 1040.11
• System Voltage :
• US: 100-120V at 50/60Hz
• EU/AU: 200-240V at 50-60Hz
• Power Consumption : Max. 300 VA
• Communication Protocol : DICOM Compatible
