Mcube -Model BioCon-900 -Ultrasonic Bladder Volume Measurement System

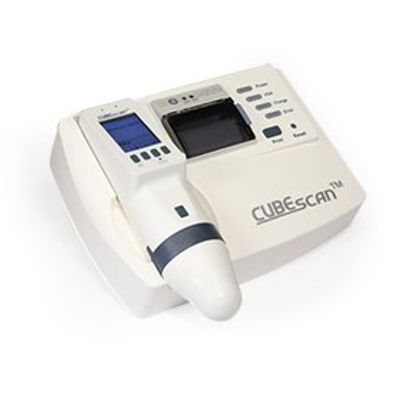

CUBE scan BioCon-900 is a hand-held, non-invasive ultrasound device that measures bladder volume quickly and easily. A built-in printer in the docking station enables immediate on-site printing.
Most popular related searches
bladder volume measurement
bladder volume
bladder volume measurement system
ultrasound device
bladder scanning
patient identification
handheld ultrasound
Display: 2.4 inch TFT-LCD
Bladder output range: Bladder volume range : 0 – 999ml
Accuracy : ±15%, ±15ml (0 – 999ml)
Scan time: Approximately 3 seconds
Ultrasound probe: Ultrasound frequency : 2MHz, 3.4MHz (Dual)
Scan angle : 120º
Penetration depth : 23cm (Normal patient), 8cm (Children)
Power:
Rechargeable Li-ion battery
Nominal voltage : 3.6V
Nominal capacity : 5200mAh
Charging : less than 6 hours
Discharging : Approximately 1500 scans
Charged by the docking station
External interface: USB 2.0 basic
Printer: Built-in thermal printer in the docking station
(Wireless data transmission by IrDA)
Patient ID input: 1D/2D Barcode scan or Image capture
User Interface: Icons and 5 buttons
