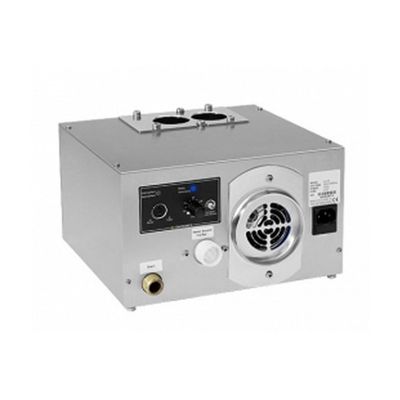

Contronics -Model HU-25 -Ultrasonic Humidifier
The HU-25 ultrasonic humidifier is particularly useful when installed under refrigerated counters due to the low height.
Most popular related searches
- Transducer frequency : 1.7 MHz
- Maximum Capacity : 0-1.2 kg/hour (adjustable)
- Service life of the transducers : 10,000-20,000 hours
- Size of water droplets : 1-3 micron
- Diameter of outlet flange : 2 x 40 mm
- Diameter of suction flange : 80 mm
- Airflow : adjustable (0-60 m3 0 Pa)
- Outlet pipe length : 6 mtr
- Water pressure : 1-6 bar
- Water connection : 3/4″ external
- Maximum water hardness : 8° German Hardness (demineralised water recommended)
- Flushing frequency : 1x per hour (adjustable)
- Water discharge : 1/2″ external
- Content of water tank : 300 cm3
- Mains voltage : 230 V ± 10% 50/60Hz
- Power consumption : 120 W
- Ambient temperature : 0 °C till 35 °C
- Water temperature : 5 °C till 15 °C
- Ambient temperature compared to supply air temperature : Non condensing
- Measurements (L x W x H) : 270 x 260 x 160 mm
- Material : Stainless steel 316L
- Weigth : 8kg
- Build-in options:
- Build-in ozone generator (OG)
- Capacity ozone : 0-20 mg/hr (adjustable)
- Controlling ozone : Via timer with day programming
