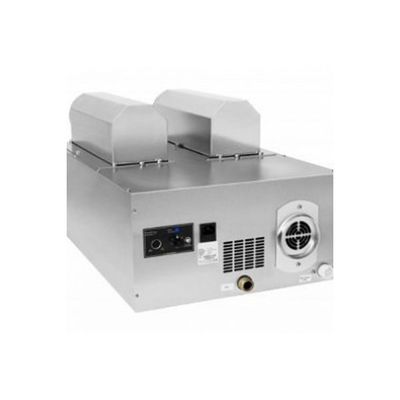

Contronics -Model HU-245 -Ultrasonic Humidifier
The HU-245 ultrasonic humidifier is a powerful machine for large displays of up to 18 meters in length, cold storage of up to 4,500 m3 and for show effects.
Most popular related searches
- Transducer frequency : 1.7 MHz
- Maximum capacity : 0-18 kg/hour (adjustable)
- Service life of the transducers : 10.000-20.000 hours
- Size of the water droplets : 1-3 micron
- Diameter of outlet flange : 2 x 110 mm
- Diameterof suction flange : 80 mm
- Airflow : adjustable (0-200 m3 0 Pa)
- Outlet pipe length : 12 mtr
- Mains water pressure : 1-6 bar
- Water connection : 3/4″ external
- Maximum water hardness : 8° German Hardness (demineralised water recommended)
- Flushing frequency : 1x per hour (adjustable)
- Water discharge : 3/4″ external
- Content of watertank : 4000 cm3
- Mains voltage : 230 V ± 10% 50/60Hz
- Power consumption : 1.3 KW
- Ambient temperature : 0 °C till 35 °C
- Water temperature : 5 °C till 15 °C
- Ambient temperature compared to supply air temperature : Non condensing
- Dimensions : 660 x 425 x 290 mm
- Material : Stainless steel 316L
- Weight : 43 kg
- OG (with integrated ozone generator)
- Capacity ozone : 0-20 mg/hr (adjustable)
- Controlling ozone : Via timer with day programming
