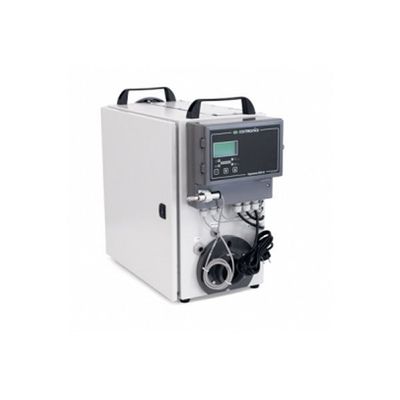

Contronics -Model HU-45-CA -Ultrasonic Humidifier
The HU-45-CA ultrasonic humidifier is a dedicated solution for applications that don’t allow the external air to be mixed with air that circulates through the HU-45 (CA environment).
Most popular related searches
- Transducer frequency : 1,7 MHz
- Maximum capacity : 0-3.0 kg/hour (adjustable)
- Service life of transducers : 10.000-20.000 hours
- Size of the waterdroplets : 1-3 micron
- Diameter of outlet flange : 4 x 40 mm (or 1 x 80 mm with adapter)
- Diameter of suction flange : 80 mm
- Air flow : Adjustable (0-60 m3 0 Pa)
- Outlet pipe length : 6 meter
- Water pressure : 1-6 bar
- Water connection : 3/4” external
- Maximum water hardness : 8° German hardness (demineralised water recommended)
- Flushing frequency : 1x per hour (adjustable)
- Water discharge : ½” external
- Content of water tank : 650 cm3
- Mains voltage : 230V ± 10% 50/60 HZ
- Power consumption : 250 W
- Ambient temperature : 0 °C till 35 °C
- Water temperature : 5 °C till 15 °C
- Ambient temperature compared to supply air temperature : Non condensing
- Dimensions (LxWxH) : 630 x 300 x 570 mm
- Housing : Stainless steel 316L
- Weight : 30,5 kg
