Herrmann Ultrasonics -Model COMPACTLINE Series -Ultrasonic Welding Systems
The COMPACTLINE Ultrasonic Welding Systems from Herrmann Engineering offer a versatile solution for automation and robotic integration. These 35 kHz actuators are designed for environments where compactness and weight reduction are crucial, delivering high-quality, repeatable welds. Equipped with a robust VARIO weld process controller, the system provides precise control and visualization for process optimization. The integration of proportional valve technology and position measuring systems ensures consistent weld forces, while a digital high-performance generator facilitates extensive data exchange. This modular system offers various configurations with Ethernet connectivity, supporting high-quality standards in industrial automation projects. The COMPACTLINE series suits roles in space-limited automation lines and as lightweight solutions on robotic arms, featuring ease of integration and decades of development experience.

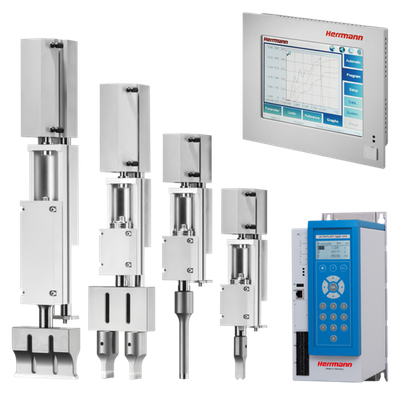

Compact 35 kHz actuator product line of automated welding machines, when size and weight matters. Available as single components, for automation integration or in robotic welding automation systems for the flexible use of ultrasonic welding technology with high, repeatable weld results.
- 40 - 100 mm stroke length
- 16, 25 and 40 mm cylinder diameter
- 4 product types
COMPACTLINE VARIO
In space-saving integration tasks in automation lines and in robot applications you can count on the familiar Herrmann ease of use and quality with these automatic welding machines. The VE COMPACTLINE VARIO actuator in combination with the weld process controller VARIO control provides excellent, reproducible weld results and visualization of the ultrasonic welding process supports parameter finding and recording for quality purposes. Proportional valve technology combined with appropriate position measuring systems complete this 35 kHz weld system with a generator power of 1,200 W.
Flexible weld process controller: VARIO control
Graphical weld process monitoring
PropControl: proportional valve technology
Application-oriented position measuring systems
High degree of customization
COMPACTLINE LOGIC
Even in this system class, a 5.7” touch screen is part of the system operation and process monitoring for operating convenience. Often, in automated 35 kHz applications, every millimeter of assembly space counts, every gram of weight saved in the weld system helps in the achievement of an optimal configuration of robotic arm welding machines. Individual weld forces can be easily programmed on the operating device using proven proportional valve technology.
Compact and robust system structure
Space-saving control solution: LOGIC control
PropControl: proportional valve technology
Position measuring system technology
Operation via touch panel
COMPACTLINE SOLID
The most compact robotic welding automation solution Herrmann has to offer. When it comes to limited installation space and low weight, then you cannot beat this 35 kHz ultrasonic welding system. The digital high-performance generator offers a variety of possibilities for data exchange via Ethernet and optional fieldbus module. The SDM variant allows weld processes with position measurement and analysis. A useful supplement for higher quality requirements.
Ultra-compact system structure
System-integrated controller: SOLID control
PropControl: proportional valve technology
Position measuring system technology with SOLID SDM variant
Various fieldbus modules (option)
- VE COMPACTLINE VARIO : 35 kHz
- Generator power [W] : 1200
- Weld force min./max.* [N] *at 6 bar : 30 / 680
- Stroke [mm] : 40 / 100
- Outside dimensions (W x H x L*) [mm], *depending on type and stroke, without sonotrode : 56 / 75 / 264 - 417
- Operating device : 8,4" Touchscreen color
- Operating modes : 5
- Application memories : 32
- Number of saved welds (weld data) : 100 per Memory
- Control of auxiliary functions (optional) : max. 4
