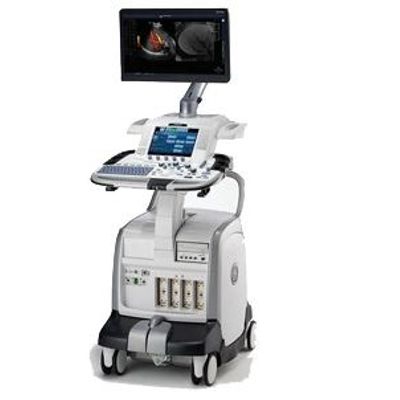

GE LOGIQ - Model E9 XDclear 2.0 - Ultrasound Machine

GE LOGIQ E9 with XDclear 2.0 Features:

• 23” Wide screen High-Resolution LCD LED backlit display
• 22” Wide screen High-Resolution OLED Display
• Monitor translation: 350mm, 13.7 in. horizontal; 120mm, 4.7 in. vertical; 90 degree swivel
• Advanced user interface with high resolution 10.4 inch touch screen
• Integrated Hard Disk Drive (500 GB)
• Integrated DVD-R Multi Drive
• 4 Active Probe Ports
• KBD/Monitor up-down mechanism (200mm adjustable in height)
• On-board storage for peripherals: Black/white printer.
• Rear Storage Cover for Peripheral Connectors and Cables
• Probe Holder, removable for cleaning and washing
• Gel Holder, removable for cleaning and washing
• Integrated Gel Warmer (option)
• Integrated speakers with sub-woofer for premium sound
• Wheels. Wheel diameter: 175mm. Rotating flexible wheels with protective cover. Locking Mechanism for wheels.
• Automatic Optimization
• CrossXBeam
• Speckle Reduction Imaging (SRI-HD)
• Fine Angle Steer
• Coded Harmonic Imaging
• Virtual Convex
• Patient information database
• Image Archive on integrated CD/DVD and Hard Drive
• Advanced 3D
• Raw Data Analysis
• Real-time automatic Doppler calcs
• OB Calcs
• Fetal Trending
• Multi gestational Calcs
• Hip Dysplasia Calcs
• Gynecological Calcs
• Vascular Calcs
• Urological Calcs
• Renal Calcs
• Cardiac Calcs
• inSite ExC Capability
• On-board electronic documentation

GE LOGIQ E9 with XDclear 2.0 Dimensions and Weight:

• Height: 51 in.
• Width: 23 in.
• Depth: 33.5 in.
• Weight: 297 lb

GE LOGIQ E9 with XDclear 2.0 Specifications:

• Digital Beamformer
• Imaging Depth: 0-36cm [Minimum: 0-2 cm (Zoom); Maximum: 0-36 cm]
• Continuous Dynamic Receive Focus/Continuous Dynamic Receive Aperture
• Adjustable Dynamic Range
• Adjustable Field of View [FOV]

GE LOGIQ E9 with XDclear 2.0 Console ports:

• DVI-I interface
• S-Video Output
• Wireless LAN
• Multiple USB 2.0 ports

GE LOGIQ E9 with XDclear 2.0 image storage:

Onboard database of patient information from past exams

Storage formats:

• DICOM®compressed or uncompressed, single/multiframe, with/without raw data, storage via clipboard and/or seamlessly directly to destination device
• Transfer/“Save As” JPEG, MPEG, AVI formats
• Storage devices (optional ) :
• USB memory stick: eight GB
• CDRW storage: 700 MB (DVD option required)
• DVD storage: RW (4.7 GB)
• Hard drive image storage: one TB
• Compare previous images with current exam
• Reload of archived data sets
• Storage Format
• DICOM, Export JPEG, WMV(MPEG4), AVI
• Storage Devices
• USB Memory Stick (64MB to 64GB; CDR Storage (700MB)
• DVDR Storage (4.7GB)
• Hard Drive Image Storage (~335GB)
• OnBoard database of patient information from past exams
• Compare previous exam images with current exam
• Reload of archived data sets

GE LOGIQ E9 with XDclear 2.0 Optional Features:

• LOGIQView
• Coded Contrast Imaging [not available in the US]
• B Flow (including B Flow Color)
• Volume Navigation
• Scan Assistant
• DICOM 3.0 connectivity
• Report Writer
• Real-Time 4D
• Physiological Input Panel
• Wireless LAN
• CW Doppler
• Tissue Velocity Imaging (TVI)
• Shear Wave and Strain Elastography
• TV Probe Holder
• Tomographic Ultrasound Imaging
• Volume Calculation (VOCAL II)
• Volume Contrast Imaging (VCI) Static
• Quantification (Elastography [not available in the US], Color Flow/PDI, Volume, TVI, Contrast)
• Stress Echo
• Auto IMT
• Compare Assistant
• Breast Productivity Package
• Thyroid Productivity Package
• OB Measure Assistant
• Breast Measure Assistant
• Tru3D
• Integrated Gel Warmer
• B Steer+
• Parametric Imaging
• Auto Ejection Fraction (Auto EF)
• Cardiac Automatic Function Imaging (Cardiac AFI)
• RF Data Capture

GE LOGIQ E9 with XDclear 2.0 Probes/Transducers:

Note: The GE Logiq E9 with XDclear 2.0 and the former version of Logiq E9 systems transducers are identical except for the C2-7-D, C2-7VN-D, C3-10-D, and L3-9i-D which are an incremental improvement from the exisiting transducers.

XDclear Convex Probes

• C1-6-D [1-6MHz]
• C1-6VN-D
• C2-9-D [2-9MHz]
• C2-9VN-D
• C3-10-D [2-11MHz]

Convex Probe

• M6C-D
• C1-5-D [1-6MHz]
• C2-6b-D [2-6MHz]
• C2-7-D
• C2-7VN-D

Intra-Cavitary Probe

• IC5-9-D [3-10MHz]

Micro-Convex Probe

• C2-7-D [1-6MHz]
• C2-7VN-D
• 3CRF-D
• 3CRF

Linear Probe

• 9L-D [2-8MHz]
• 11L-D [3-11MHz]
• ML6-15-D [4-15MHz]
• L8-18i-D [4-15MHz]
• L3-9i-D [2-19MHz]

Sector

• S1-5-D [1-6MHz]
• S1-5
• M5S-D [1-5MHz]
• 6S-D [2-8MHz]
• S4-10-D [3-9MHz]
• S4-10

Real-time 4D

• RAB6-D [2-8MHz]
• RAB2-5-D
• RAB4-8-D
• RNA5-9-D
• RIC5-90D[3-10MHz]
• RSP6-16-D [6-18MHz]

Speciality

• 6Tc-RS [2-8MHz]
• P2D [2MHz]
• P6D [6.3MHz]

Abdominal, Small parts and superficial, Pediatric, Musculoskeletal, Intraoperative, Urology, Prostate, Obstetrical, Gynecological, Fertility, Breast, Vascular, Transcranial Doppler, Cardiac, Pediatrics, Liver, Interventional, Strain/Shearwave Elastography, Stress echo, Radiology
