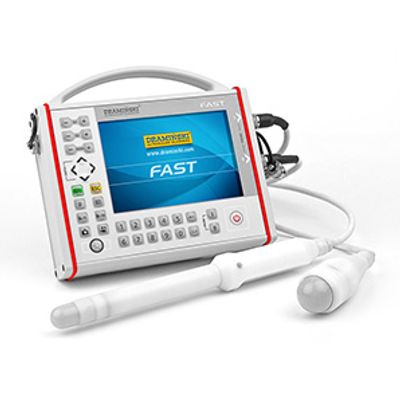

Fast - Ultrasound Scanner

Have you ever tried to visit a patient with an ultrasound scanner weighing 12 kg?
Will the device made of plastic survive falling down from the height if it slips out of your hand?
How much time do you need to disinfect a scanner with a laptop keyboard and a dozen of keys?

Do you need something light, small, reliable, fast in use and disinfection? Try and make sure how easy and accurate diagnostics would be with the DRAMINSKI ultrasound scanner.

For whom is FAST?

It is for all doctors on call who work professionally in different clinics, who perform diagnostics at the bedside, who visit their patients at home or take care of patients in different places. In all these cases a mobile ultrasound scanner FAST will help you to diagnose the patient.

Light, mobile, extremely durable, ideal B mode image, 6,5-inch monitor, intuitive operating, battery run time is 4,5 hours, easy to disinfect, cooperating with multiple mechanical probes.

Where can it be applied?

With its help, depending on a probe, you will be able to carry out fast scanning of:

• organs of the abdominal cavity,
• lungs,
• pelvic (the basic gynaecological and obstetric examinations).

Your aim is to improve health care, our aim is to provide you with the best ultrasound equipment.

The set contains:

• FAST ultrasound scanner with a back lit LED LCD monitor and a membrane keyboard
• Mechanical probe – its type depends on agreement with the supplier
• Battery back (Li-Ion, 14,4 V / 3.1 Ah)
• Battery charger with a 230 V supplying cable
• Adapter for the external memory port to transfer the images to the external memory
• Transport case
• Tripod – table support
• User manual and warranty card

• Use  ultrasound medical diagnostics
• Mode of imaging  black-and-white imaging B,  B+B,  B+M
• Image management  Freeze
• Cine-loop
• Zoom 60 – 200% of the initial image, enlargement every 20%
• Full screen function
• Storage of images and cine-loops in the memory (256 exposures)
• Transferring images and cine-loops from the memory to the screen
• Measuring (distance, surface, volume)
• Monitor  LCD LED screen, diagonal 6.5″
• Functions’ control  membrane keyboard
• Images and cine-loops’ memory   memory capacity is min. 200 images and 200 cine-loops with a date and description
• Image transmission  to an external disc – possibility to connect to a USB port via external memory connector using a special adaptor
• Type of heads  Mechanical – abdominal  90º, endovaginal  90º and endorectal 360º. Frequency range from: 3 to 10 MHz
• Number of head ports  two independent ports (connectors)
• Supply  external battery pack (Li-Ion, 14.4V, 3.1 Ah)
• Continuous work at battery supply  4 hours 30 minutes – at a single fully charged battery pack
• Time of battery pack charging
• about 2.5 hours (charger Type 2541 LI)
• Indicator of battery pack discharge  graphic indicator – colour code and a sound signal before an automatic switch off
• Size  23.0 cm x 21.0 cm x  6.0 cm
• Weight of the device  1530 g without a probe and the battery pack
• Weight of the battery pack  280 g
• Working temperature  +10°C to +45°C
• Storage temperature  +5°C to +45°C
• Energy consumption  around 0.71 A
• EAN code  5906874410011
