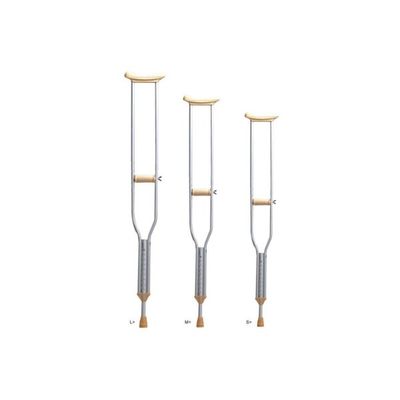

Foshan - Model FS925L(L/M/S) - Underarm Crutch
Our product aluminum alloy armrest is BASED ON GB/T 19545.2-2009 "Single Arm Operation Of Walker Requirements and Test Methods Part 2: Armpit Crutch" national standard, as a reference standard for design and production, Q/DF4-2015<< The enterprise standard as the implementation standard of design and production, its structural characteristics are as follows:
Most popular related searches
The enterprise standard as the implementation standard of design and production, its structural characteristics are as follows:
- Main frame:Adopt the main material of lightweight aluminum alloy, surface oxidation treatment, tube material specifications: diameter 19 mm, wall thickness 1.2 mm;
- Legs:Using 6063T5 high-strength aluminum alloy aluminum alloy tube, surface oxidation treatment, tube material specifications: diameter 22 mm, wall thickness 1.22mm;
- Tripod:Light aluminum alloy tube, surface oxidation treatment, tube material specifications: diameter 25 mm, wall thickness 1.22 mm;
- Armpit sleeve:The use of thickened antibacterial wear-resistant EVA material, anti-slip, comfortable, environmentally friendly and durable.
- Foot pads:Single foot landing structure, with rubber anti-slip foot pad, good landing performance, good stability, safe and reliable.
- Performance:Height 9 gear adjustment, suitable for 1.5m ~ 1.8m people to use, the product`s inward stability is not less than 1.5 degrees, outward stability energy is not less than 4.0 degrees.
- Name : parameter
- Total length : 20.5cm
- Total width : 4.3cm
- Total high : 95-155 cm
- Packing size (L*W*H/pcs). : 119*33*29cm/20
- Maximum load : 180kg
- Net weight : 0.87kg
