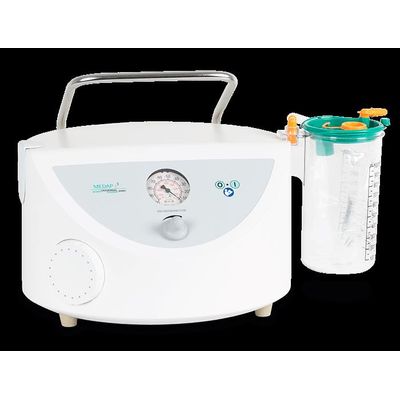

MEDAP BORA -Model UP 2080 -Universal Aspirator
The MEDAP BORA UP 2080 is an all-round talent for hospitals, clinics, and doctor’s practices. It meets the most diverse requirements in the OR and in intensive care units. The space-saving, easily portable universal aspirator evacuates large quantities of blood and serous fluids quickly and reliably. The MEDAP BORA UP 2080 can be mounted on a trolley, the platform of a ceiling supply unit, or an equipment rail.
approx. 42 l/min
–90 kPa
–900 mbar
0 up to –1000 mbar
Continuous operation
230 V~, 50/60 Hz
115 V~, 60 Hz
310 x 360 x 310 mm
(without trolley)
1080 x 550 x 570 mm
(with trolley)
approx. 11 kg (without trolley)
approx. 21 kg (with trolley)
50.5 dB(A)
portable
mobile
with device support
2 x 1 l (without trolley)
4 x 4 l (with trolley)
Universally applicable
thanks to a wide range of placement options
High level of protection against oversuction and contamination
due to the modular overflow protection and additional bacterial filter installed on the air outlet
High degree of flexibility
thanks to the large carrying handle and two stable equipment mount interfaces
- Operating room / anesthesiology
- Doctor`s practice
- Dental practice / maxillofacial surgery
- Practice for oral and maxillofacial surgery
- Outpatient surgery center
A large carrying handle makes it easy to transport. Two integrated brackets ensure easy and secure attachment to equipment rails.
Extremely easy handling thanks to the individually adjustable vacuum, the clearly visible, large gauge and an optimum working height for the user.
The MEDAP BORA UP 2080 has an innovative, modular overflow protection system in order to perfectly meet the application-specific requirements in the operating room as well as in intensive care units and on special wards.
In addition to the oversuction protection system, the MEDAP BORA UP 2080 has a high-performance bacterial filter installed on the air outlet and thus a second, highly effective means of contamination protection.
