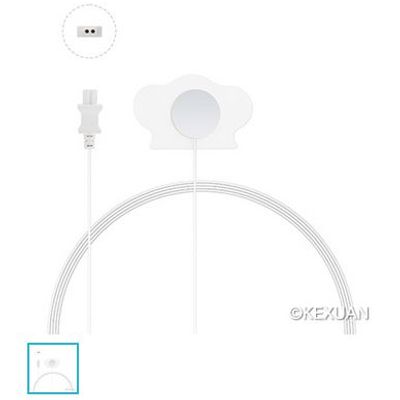

Universal Skin Sensor - Disposable Temperature Probes
Real-time central temperature monitoring of intraoperative patients. It is suitable for central body temperature monitoring of the body surface and armpits of adults and children; Compatible with a variety of monitors to provide accurate body temperature signals; Single use to avoid the risk of cross-infection.
Most popular related searches
anesthetic gas
children compatibility
body fluid
central monitor
intraoperative
skin temperature
patient temperature
intraoperative monitoring
- Main performance: to collect and transmit the patient`s body temperature physiological signals.
- Scope of application: suitable for different models of multi-parameter monitors and electronic thermometers that can be continuously measured.
- Temperature measurement range: 32 ºC ~ 44 ºC; Maximum allowable error: ±0.1 ºC
- Response time: <150s
- Classification according to the degree of shock: according to the general electric shock protection classification rules, thermometers belong to BF type, and the application part of the body temperature probe is also BF type after matching with it.
- Classification according to the degree of protection of inlet liquid: ordinary equipment.
- Classification by operating mode: continuous operation.
- Classification by the degree of safety when used in the case of flammable anesthetic gas mixed with air or flammable anesthetic gas mixed with oxygen or nitrous oxide: non-APG.
- Electromagnetic Compatible: meets the requirements of YY 0505-2012.
- Probe (resistive type) maximum energy dissipation: When immersed in a sink with a temperature of 37±0.1°C, the maximum power provided of 0.06mW should not cause the energy consumption to increase the temperature by more than 0.02°C.
- Stability: After placing the temperature probe in an environment of (80±2)°C for 96h, the maximum allowable error value before and after the probe exposure meets the requirements of ±0.1 ºC.
- Body fluid protection: The body temperature probe is sufficiently insulating enough to prevent changes in the indicated temperature from exceeding ±0.02°C when immersed in conductivity fluid.
- Cleaning and disinfection: After the body temperature probe is cleaned and disinfected according to the cleaning and disinfection method recommended in the manual, the maximum allowable error meets the requirements of ±0.1 ºC.
