Numed QRS -Universal Smart ECG PC Based Resting ECG System

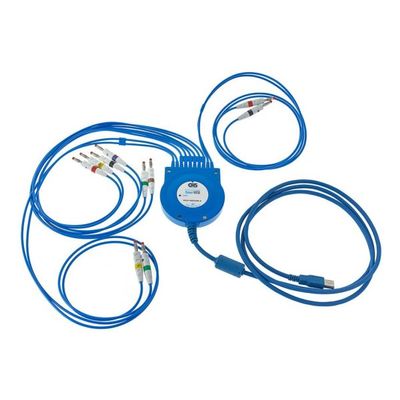

The Universal Smart ECG 12-Lead Interpretive ECG machine from QRS Diagnostics is an easy to use, portable and lightweight resting ECG device that plugs directly into any PC. The Universal is ideal for primary care ECG clinics or a GP Surgery on a limited budget and is supplied with a 3 year warranty.
Using the included Intelligent Integration Interface (I3) software*, the Universal Smart ECG is fully integrated with all the leading NHS clinical systems from EMIS, TPP and Vision. The software automatically files a high quality ECG report (as a PDF) and a coded result to the patient`s record on test completion. Universal ECG is also compatible with the ECG On-Demand with i3 ECG interpretation service from Technomed.
It is supplied with all the required software and accessories and includes a one year MediServe support package to ensure that your service continues to run smoothly. The included Cardioview software can be installed onto as many of the GP Practice or hospital PC’s as you like, enabling you to perform an ECG in any room.
What’s inside the package?
- Universal Smart ECG 12 Lead ECG System
- CardioView interpretive software
- 100 Ambu SUPAtab ECG electrodes
- 10 Ambu crocodile clips
- Padded Weave Transit Case
*ongoing license cost applies
Benefits
- Reduce appointment times
- Increase patient safety
- Eliminate the need for manual data entry
- The patient’s details are automatically passed to the ECG software, ready for the ECG test to be performed. No re-entry of patient data is required.
- I3 sends the results to the patient’s medical records automatically, including a copy of the report and a Read code, showing the ECG has been completed.
- Safety Standards : Complies with AAMI EC11, IEC/ EN60601-1, IEC/EN 60601-1-2, IEC/EC 60601-225
- Hub Weight : 335 grams maximum
- Hub Dimensions: 85 x 91 x 20 mm
- Patient Leads Length: Limb = 1 meter,Chest =0 .6 meter
- Gain/Sensitivity: 5,10,20 mm/mV
- Input Range: ±6mV
- Defibrillator Protection: Patient leads are isolated from system and operator, with 4kV protection
- Electrode Connections: 4mm banana plug with tab or snap connectors
- Frequency Response : 0.05 to 175Hz ±3dB
- Environmental Conditions: Operating Temp. 0-40°C, Storage Temp. -20-70°C, Humidity < 85% (non- condensing).
- PC Requirements: Operating System: Windows 10 (64 bit), Hard Disk Space: 100MB, Graphics: Minimum 1024x768 resolution, USB: One free USB port is required
