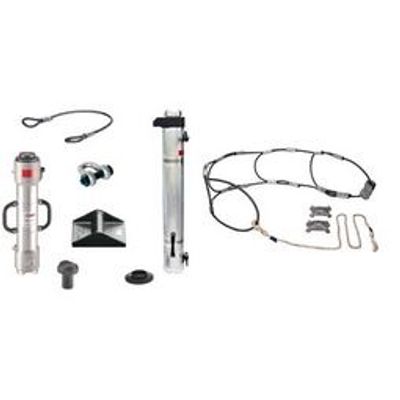

Lukas Claw Jack - Model HP 50 / P 850 R - Uprighting System
Our uprighting system is the perfect answer in case of an accident with an overturned rail vehicle that cannot be rescued with a crane. This enables you to upright overturned rail vehicles with ease, so that you can subsequently rerail them.
Most popular related searches
MODE OF OPERATION:
You place the lifting belt around the overturned rail vehicle and fasten it to the frame with a holding rope and shackle . A jack (HP 25 / K 400 R) and a radius plate are used to start lifting the vehicle gently and securely.
Using the tilting jack and then the claw jack lift the vehicle onto the sling before using a second claw jack when the first is fully extended, continuing the uprighting work
- Height 1150 mm
- Lifting Force 520 kN
- Stroke 850 mm
- Weight 52 kg
- Oil Volume 8 l
