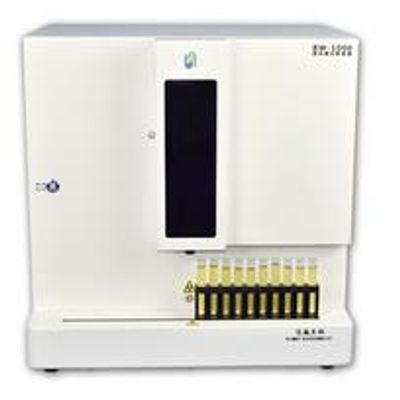

Bioway -Model BW-1000 -Urine Sediment Analysis System
Test Principle: Using machine vision technology: automatic identify, classify and count the formed elements in urine with microscope automatic morphological methods.
Most popular related searches
urine sediment
urine sediment analysis system
hospital management system
urine sediment analyzer
urine sediment analysis
urinal
urine analysis
chemistry analyzer
hospital management
urine analysis system
- Test Items: Normal RBC, Standing RBC, Dysmorphic RBC, Normal WBC ,wbcc, Pus cell ,Hyaline Cast ,Granular Cast, WBC Cast ,Squamous Epithelial cell ,Normal Epithelial Cell ,Sperm ,Calcium Crystal ,Oxalate Crystal Bacteria ,Yeast ,Amorphous Urates ,Mucus etc.
- Test Speed: 30 samples/hour.
- Sample Volume: Minimum urine volume 2ml, minimum injection volume 0.5ml
- Sample Process: The sample can be directly tested without centrifugation.
- Flow Cell: High accuracy,single channel flow cell(test channel)
- Sampling Method: Automatic trail injection, 10 samples on the machine at the same time.
- Accuracy: ≥ 95%
- Repeatability Test: CV < 10%
- Contamination Rate: < 0.05%
- Report Form: xx unit/ul, HPF&LPF etc. international universal quantitative unit, comprehensive graphic report of dry chemical analysis and urine formed elements quantitative analysis
- Measurement: 520mm x 440mm x550mm (Lx W x H).
- Net Weight: 35kg
- Data Interface: Two-way communication interface, can be connected with dry chemistry analyzer, printer and hospital management system
- Power Supply: AC 220V?10%, 50Hz
- Standard Configuration: Computer,including screen,mouse,keyboard
