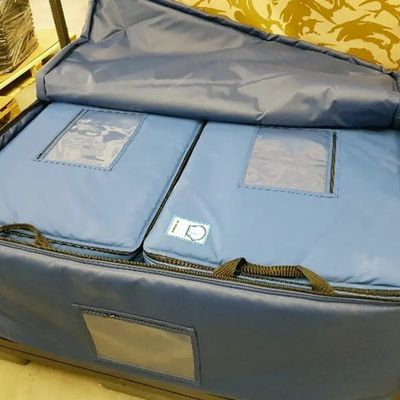

Polar Thermal - Vaccine – BluKoat Insulated Transport Bag
The Vaccine – BluKoat Insulated Transport Bag is a cutting-edge solution designed for the secure and efficient transportation of vaccines. This product, designed by Polar Thermal Packaging, offers a sophisticated insulation system using patented Polar Thermal material with a thickness of 45mm to provide effective thermal protection. It ensures the maintenance of an optimal temperature environment for vaccines, thereby safeguarding their efficacy during transit. The bag features industrial-grade zip and click-lock straps for secure closure, and its exterior and interior are constructed with cotton-coated PVC for durability. The system includes multiple components such as inner and outer bags, cardboard containers, and a thermal pallet, enhancing its versatility. With an empty weight of 140 kg and dimensions of 1300 mm in width, 720 mm in height, and 600 mm in depth, it is engineered for high-capacity use, capable of holding significant quantities of vaccines. Its thermal conductance is rated at 1.01 ± 0.1 w/m².k, while thermal conductivity is measured at 0.05 ± 0.005 w/m.k, ensuring reliable thermal management.
Our vaccine shippers are designed to maintain set temperatures for longer than any other shipper on the market today. The Blukoat carries 2 x 600 shippers side by side in one whole bag unit for maximum thermal protection. Suitable for global transportation and for mobilisation to military field operations, Blukoat can be made to fit over all types of ULD including LD3, LD7 and LD9
- Weight empty : 140 kgs
- Vaccine carried : 1200
- External surface material: Cotton coated PVC
- Internal lining material : Cotton coated PVC
- Insulation material : Patented Polar Thermal material
- Insulation thickness: 45mm
- External dimensions: w: 1300 h: 720 d: 600
- Fixings: Industrial Zip and click-lock straps
- Thermal conductance (w/m².k) : 1.01 ± 0.1
- Thermal conductivity (w/m.k) : 0.05 ± 0.005
- System components : 2 x inner bag; 2 x cardboard container; 2 x outer bag; 1 x outer cover; 1 x thermal pallet
