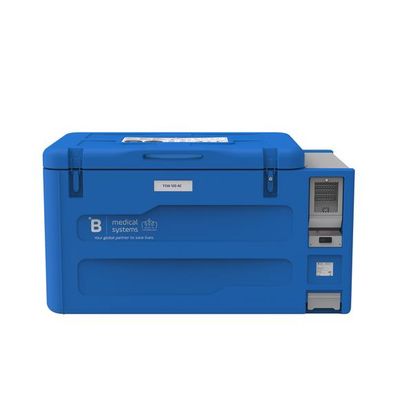

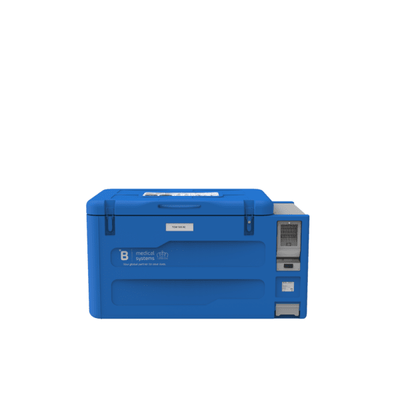

B-Medical Systems -Model TCW120AC -Vaccine Refrigerator / Ice-Pack Freezer

FromB Medical Systems

SHARE

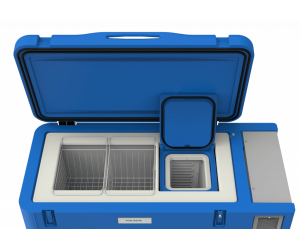

Vaccine Refrigerator & Ice-pack Freezer with 153L (refrigerator) | 28L (freezer) gross volume.

Most popular related searches

vaccine refrigeration

vaccine refrigerator

vaccine cold chain

vaccine freezer

vaccine storage

vaccine product

vaccine production

Set Temperature: +5°C (Refrigerator) | -20°C (Freezer)
Vaccine storage capacity: 120 L
Certifications: EU MDR Class I | IEC 61000-3-2 / 61000-3-3 | WHO PQS 003/123
Freeze protection: Grade A
Climate class (ambient temperature range): Hot zone (+43°C)
Energy source: AC

Fully integrated automatic voltage stabilization solution (for any voltage in between 90-290 V) and a protective relay
5 years international warranty for all parts and labour
Green technology: very low power consumption and environmentally friendly refrigerant (R600a)

Designed to operate in tropical conditions
Rotomoulded body construction: rust free and extremely robust
Humidity control: no condensation issues in the fridge

Strong insulation
Silicone gaskets and lockable clasps: tight closing and restricted access
Audio-visual alarm system with remote transmission
Remote temperature monitoring solution, comprising a data logger and a digital platform
Integrated Remote Temperature Monitoring Device (RTMD), offering real-time worldwide remote monitoring, data access over WEB and GPS position

Cross volume: 153L (refrigerator) | 28L (freezer)
Vaccine storage capacity: 120 L
Set Temperature: +5°C (Refrigerator) | -20°C (Freezer)
Climate class (ambient temperature range): Hot zone (+*G°C)
Certifications: EU MDR Class I | IEC 61000-3-2 / 61000-3-3 | WHO PQS 003/123
External dimensions (HxlA/xD): 910 x 1620 x 790 mm
Net weight: 139 Kg
Shipping weight: 188 KG
Frequency: 50-60 Hz
Supply voltage: 110-240V/ AC
Refrigerant Type: Natural R600a
Materials: Polyethylene
Remote monitoring: RTMD included
Cool down: 192h at t3°C
Hold over time: 73hS<min at +43°C
Energy cons. 24h stable: 1.55kWh/24h at 43°C
Energy source: AC
Freeze protection: Grade A
WHO PQS Code: E003/123
Product Type: Vaccine Refrigerator & Ice-pack Freezer
