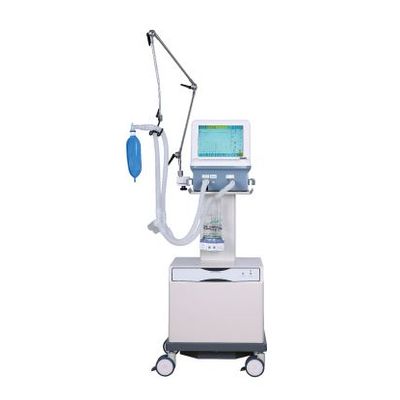

Render - Model SD-H3000A - Ventilator

Air circuit Performance:

• Maximum safety pressure of air circuit: no more than 6kpa.
• nspiratory oxygen concentration: 21-100%.

Ventilation Performance:

• Respiratory rate (f): 4-99 times / min,
• Inspiratory time (Ti): 0.2-6 s,
• Breath holding time (Tp): 0-2s,
• Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
• Tidal volume (Vt): 0-2000ml;
• Maximum minute ventilation volume: not less than 18 L / min.
• PSV:0~5 kPa,
• Peep Pressure: 0-3kpa,
• Inspiratory flow rate: 0-80 L / min.
• SIMV frequency: 6-60 times / min,
• Inspiratory pressure: 0-6kpa,

Alarm Performance:

• Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
• Pressure Low Limit (Pl) alarm: 0~2KPa, audible and visual alarm.
• Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
• Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
• Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
• Mute: no more than 2 minutes.

Monitoring Performance:

• 12.1 inch color LCD
• Tidal volume (VT): 0 ~ 2000ml
• Measured total frequency (Ftot), Spont. frequency (Fspont)
• Minute ventilation (Mv).
• I: E ratio.
• Airway pressure (PAW).
• Peak pressure (Ppeak)
• Peep pressure: 0.1 ~ 2KPa
• Pressure-Time and Flow-Time waveform
