Orthoscan -Model ZiehmSolo -Versatile Design Meets Proven C-arm Technology

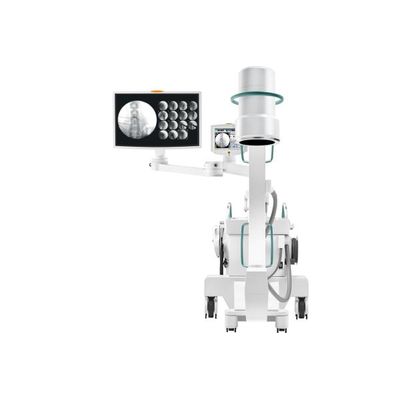

Versatile solution for small operating rooms. Ziehm Solo is one of the smallest C-arms on the market. As standard, Ziehm Solo comes with a 27″ high-brightness full HD monitor mounted on the C-arm, eliminating the need for a separate monitor cart. All functions required for image capturing, processing and archiving are integrated in the C-arm. Its compact design and easy-drive system make Ziehm Solo ideal for even the smallest ORs.
Ziehm Solo comes with a highly compact monoblock generator. It generates short, sharp pulses with up to 25 frames per second, producing crystal-clear images even if the patient is moving. This intelligent pulse technology also reduces dose levels.
The system provides a 1k x 1k resolution and more than 4,000 shades of gray to helps visualize even the smallest anatomical structures.
- MECHANICAL
- C-arm vertical free space : 30″
- C-arm depth : 27″
- Weight : 756lb
- Height : 69″ – 85″
- Width : 32″
- Length : 68″ – 77″
- IMAGE INTENSIFIER
- Size : 9″
- Resolution : 5.2 lp/mm
- Mag mode 1 : 5.8 lp/mm
- Mag mode 2 : 6.8 lp/mm
- MONITOR :
- Display size : 19″ (x2)
- Brightness (panel) : typ. 1000 cd/m2
- Ziehm Viewing Station : Optional
- ELECTRICAL
- Power supply : 120 VAC, 60 Hz ± 10%
- X-RAY GENERATOR
- X-ray tube : Stationary anode
- Generator type : Monoblock
- High-frequency generator : 40 kHz
- Maximum output : 2.02 kW
- Pulsed fluoroscopy kV range : 40 – 110 kV
- Pulsed fluoroscopy mA range : 0.2 – 16.2 mA
- Pulse rates : 25, 12.5, 8, 4, 2, 1 pps
- IMAGE PROCESSING
- USB port : DICOM, TIFF, Multimedia (AVI), JPG
- Image capacity : 100,000
- Multifunction wireless foot switch : Optional
- Wireless communication : Optional
- Printer : Optional
- Laser alignment : Optional
- DICOM classes : ?
