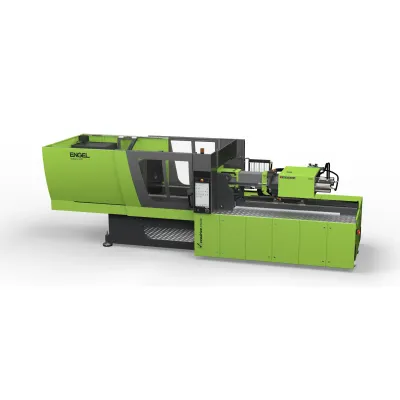

ENGEL - Victory Injection Moulding Machine

Quick Mould Change
The tie-bar-less technology shows its best and fastest side when it comes to changing moulds. No tie-bar pulling or time-consuming assembly work is needed.

Manufacture of T-pieces for 1¼ Pipes
As much space as possible for your mould or your automation - with our patented victory tie-bar-less injection moulding machine series.

Production of 40-mm Flip-Top Closures
The application demonstrates the efficient production of flip-top closures. The basis is a tie-bar-less victory 1050/180 injection moulding machine.

victory Stock Machines for Fast Availability
We have the solution when you need a machine at short notice. Fast machine availability and flexibility. As usual, everything from a single source.

Medical Technology Application
Highly integrated, compact production cell with a tie-bar-less injection moulding machine. Minimises space requirements and increases surface productivity.

Rework-free rubber injection moulding
Fully automatic and rework-free production of rubber sieve stars with a tie-bar-less victory tech 120

Compact design and lower investment costs
Mould size, rather than maximum clamping force, is often the key to optimal machine design. The victory tie-bar-less injection moulding machine enables production with machines that are one to two clamping force classes smaller. Helping you save valuable floor space and reduce acquisition costs.

Simple integration of automation
The tie-bar-less injection moulding machines can be quickly and easily upgraded with robots, conveyor belts and a wide variety of peripheral equipment. Compact automation options and horizontal removal options save space.

Excellent platen parallelism for precise injection moulding
The platen parallelism setting of each tie-bar-less clamping unit is precisely set up before delivery. The pre-tensioning of the patented force divider means that the platen parallelism remains unchanged even when the mould is clamped.

Mould protection for longer service life
The central bending elements (Flex-Links) allow the platen parallelism to adapt exactly to the mould parallelism. The moving platen lifts out of the guide shoes in the process. The machine avoids any transverse forces and thus increases the service life of the mould.

Uniform clamping force distribution for high part quality
Regardless of whether the cavities are located in the centre or at the very edge of the clamping platen, they all have exactly the same clamping force. This is ensured by the patented force dividers of the tie-bar-less injection moulding machine, which distribute the clamping force evenly over the entire clamping surface. This guarantees consistently high part quality even with multi-cavity moulds. As a result, the machine produces the same quality - not only shot for shot, but also part for part.

Fast availability thanks to stock machine programme
For particularly urgent needs, we have the victory machine permanently in stock in many sizes. Thanks to a well thought-out logistics concept, you will receive your tie-bar-less injection moulding machine soon after we receive your order. You can adapt your victory stock machine to your specific requirements by choosing from a wide range of options. Combination with robots is also possible.
