Teradek Connex - Model Max - Video Link System

SHARE

The Connex Max Video Link system supports up to 1080p60 video resolution, zero-latency performance, and has a line-of-site range of up to 3300 ft. The Connex is a high-end wireless video system ideal for heavy-duty UAV, UGV, and Industrial or Construction equipment requiring remote HDMI video vision.

  • Zero-latency (HDMI into HDMI out: 1 mS)
  • Up to 3300 ft. Line of Sight
  • 5GHz band (5.1 to 5.8), using 20/40MHz channel
  • Up to 1080p60 video resolution
  • Up to 4 receivers can be paired and work together with a single transmitter
  • AES 128 encryption, using RSA 1024 for key exchange
  • Video Interface: mini HDMI (Type C) input & HDMI (Type A) output
  • OSD (input to transmitter) : CANbus / Mavlink
  • Gimbal control (input to receiver, output from transmitter): S.BUS

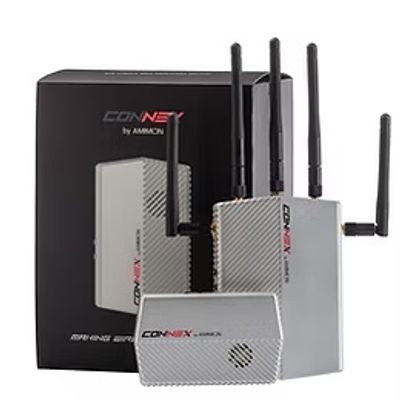

The Connex Max package includes a transmitter and receiver units. Each unit can also be purchased as a standalone to build the user application.
