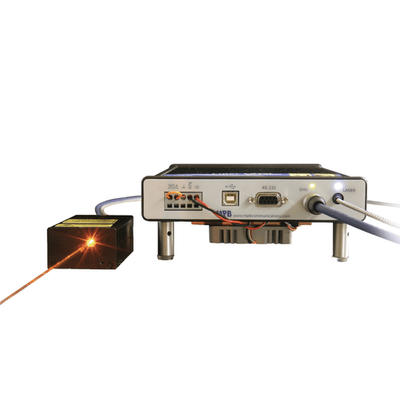

MPBC -Visible Fiber Lasers - OEM
MPBC Fiber Lasers are dependable and easy-to-use sources for a variety of industrial, medical, military and scientific applications. Exceptional performance is achieved based on the all-fiber architecture, which inherently ensures a diffraction-limited linearly polarized output with excellent wavelength stability. Along with a long lifetime, low power consumption and little maintenance, the traditional concerns of keeping optics clean, and cavity alignment sensitivity to temperature and mechanical vibrations do not exist.
Most popular related searches
- All fiber architecture ensures high reliability, low maintenance and a narrow linewidth
- Graphical User Interface for easy command and control
- Serial port for integration into higher level systems
- Customized wavelengths available
- The SHG head is separated from the fiber laser, simplifying heat dissipation and minimizing size and cooling constraints
- Tunable Output Power from 20% to 100% to adapt to application-specific requirements
- All-Fiber Laser Design
- Fiber Coupling Option
- Emission Wavelength : 465-775 nm
- Output Power : 200 to 1000 mW*
- Power Tunability Range : 20-100%
- Long-Term Wavelength Stability : ±0.1 nm
- PER : 20 dB
- Beam Quality : M² <1.1
- Beam Diameter : 1 mm ± 20%
- RMS Noise at Nominal Power : **2%
- Long Term Outpower Drift : 2%, peak-to-peak
