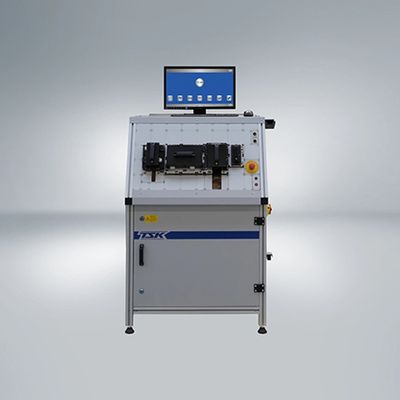

Komax -Model VS35 -Vision Test

SHARE

The user-friendly VS40 is the most used vision system. The camera and a line laser (HCT) check the correct assembly of the individual positions on the fuse or relay carriers. The vision system offers a two steps test. The first test involves recording a camera image of the test object and evaluating it using the Vision Studio nx test software. This enables the system to check whether the test item equipment is fitted with the correct components. The second test involves using a line laser and linear unit for height control. This helps to test the correct insertion depth of the components.The system offers several features, making it easy to use and efficient in ensuring accurate results. It can run individual test sequences with no required expert knowledge. The VS40 also has standardized interfaces, ensuring compatibility with different equipment. Additionally, partitioning enables its use with varying light irradiation.

Most popular related searches

vision testing system

fitness equipment

VS40 Vision Test

Metric

Dimensions/height min.: 55.11 in
Dimensions/height max.: 57.08 in
Dimensions/width min.: 27.16 in
Dimensions/width max.: 35.62 in
Depth max.: 43.3 in
Total weight, without test adapter (modules) approx.: 286.6 lb
Voltage (AC), input min.: 100 V
Voltage (AC), input max.: 240 V
Frequency, input min.: 50 Hz
Frequency, input max.: 60 Hz
Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
power supply 1, voltage (DC): 24 V
power supply 1, current (DC) max.: 4 A
Total power, standard (depending on the number of power supply units) max.: 1000 W
Ambient temperature, operation min.: 10 °C
Ambient temperature, operation max.: 40 °C
Ambient temperature, storage min.: -10 °C
Ambient temperature, storage max.: 60 °C
Air humidity non-condensing min.: 30 %
Air humidity non-condensing max.: 75 %
Emission sound pressure level (according to DIN 45635) max.: 80 dB
Protection class: IP 10
Test grid width: 500 mm
Test grid depth, vertical: 400 mm
Test grid area: 0.2 m²
max. number of test adapters (modules) to be installed for size100x100: 20
Test grid inclination, vertical: 70 °
Maximum permissible load on the test grid: 1,1 / 100 g/cm²
Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
Compressed-air connection: Kupplungsstecker Rectus G1/4 26AF AW13
Pneumatic connections min.: 1
Pneumatic connections max.: 10
Test software CS WIN nx ®, compatible with all systems: ja
Height control (line laser): Dimensions of test area, length min.: 10 mm
Height control (line laser): Dimensions of test area, length (depending of the axis) max.: 300 mm
Height control (line laser): Dimensions of test area, width min.: 5 mm
Height control (line laser): Dimensions of test area, width max.: 200 mm
Height control (line laser): Linear unit, axis speed min.: 30 mm/s
Height control (line laser): Linear unit, axis speed max.: 200 mm/s
Height control (line laser): Total test time, depending on axis speed (e.g., 100) min.: 1500 ms
Height control (line laser): Total test time, depending on axis speed (e.g., 100) max.: 3500 ms
Height control (line laser): Total test time, depending on Linear unit axis length (e.g., 580) min.: 1500 ms
Height control (line laser): Total test time, depending on Linear unit axis length (e.g., 580) max.: 3500 ms
Vision test (Camera): Dimensions of the test area, length: 300 mm
Vision test (Camera): Dimensions of the test area, width: 200 mm
Vision test (Camera): Exposure time: 125 ms
Vision test (Camera): Possible camera resolution: 2.3, 5.0, 6.2 Mpixel
Vision test (Camera): Total test time depending on Number of different types (e.g. approx. 8): 50 ms
Vision test (Camera): Total test time depending on Number of models learned (e.g. approx. 3 per type): 50 ms
Vision test (Camera): Total test time depending on Number of test positions (e.g. approx. 50): 50 ms
Vision test (camera): Total test time max.: 300 ms

Imperial

Dimensions/height min.: 55.11 in
Dimensions/height max.: 57.08 in
Dimensions/width min.: 27.16 in
Dimensions/width max.: 35.62 in
Depth max.: 43.3 in
Total weight, without test adapter (modules) approx.: 286.6 lb
Voltage (AC), input min.: 100 V
Voltage (AC), input max.: 240 V
Frequency, input min.: 50 Hz
Frequency, input max.: 60 Hz
Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
power supply 1, voltage (DC): 24 V
power supply 1, current (DC) max.: 4 A
Total power, standard (depending on the number of power supply units) max.: 1000 W
Ambient temperature, operation min.: 50 °F
Ambient temperature, operation max.: 104 °F
Ambient temperature, storage min.: 14 °F
Ambient temperature, storage max.: 140 °F
Air humidity non-condensing min.: 30 %
Air humidity non-condensing max.: 75 %
Emission sound pressure level (according to DIN 45635) max.: 80 dB
Protection class: IP 10
Test grid width: 19.68 in
Test grid depth, vertical: 15.74 in
Test grid area: 2.15 ft²
max. number of test adapters (modules) to be installed for size100x100: 20
Test grid inclination, vertical: 70 °
Maximum permissible load on the test grid: 2,42 / 15,5 lb/in²
Operating pressure (according to ISO 8573-1: 5/5/4) min.: 72.51 psi
Operating pressure (according to ISO 8573-1: 5/5/4) max.: 101.52 psi
Pneumatic connections min.: 1
Pneumatic connections max.: 10
Test software CS WIN nx ®, compatible with all systems: ja
Height control (line laser): Dimensions of test area, length min.: 0.39 in
Height control (line laser): Dimensions of test area, length (depending of the axis) max.: 11.81 in
Height control (line laser): Dimensions of test area, width min.: 0.19 in
Height control (line laser): Dimensions of test area, width max.: 7.87 in
Height control (line laser): Linear unit, axis speed min.: 1.18 in/s
Height control (line laser): Linear unit, axis speed max.: 7.87 in/s
Height control (line laser): Total test time, depending on axis speed (e.g., 100) min.: 1500 ms
Height control (line laser): Total test time, depending on axis speed (e.g., 100) max.: 3500 ms
Height control (line laser): Total test time, depending on Linear unit axis length (e.g., 580) min.: 1500 ms
Height control (line laser): Total test time, depending on Linear unit axis length (e.g., 580) max.: 3500 ms
Vision test (Camera): Dimensions of the test area, length: 11.81 in
Vision test (Camera): Dimensions of the test area, width: 7.87 in
Vision test (Camera): Exposure time: 125 ms
Vision test (Camera): Possible camera resolution: 2.3, 5.0, 6.2 Mpixel
Vision test (Camera): Total test time depending on Number of different types (e.g. approx. 8): 50 ms
Vision test (Camera): Total test time depending on Number of models learned (e.g. approx. 3 per type): 50 ms
Vision test (Camera): Total test time depending on Number of test positions (e.g. approx. 50): 50 ms
Vision test (camera): Total test time max.: 300 ms
