Komax -Model VS70 -Vision Test

SHARE

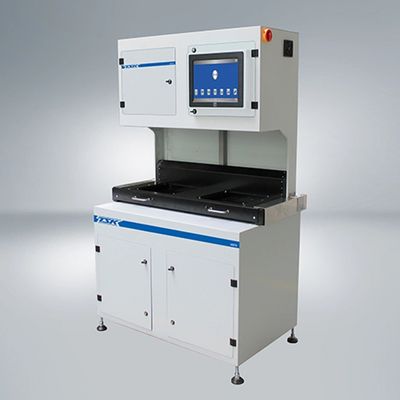

The VS70 vision system has a drawer that can hold two medium-sized test items. Correct assembly is checked using a high-end camera and a line laser. The high-end camera the Komax Testing VS70 with the Vision Studio nx test software deliver precise evaluation and high-quality imaging.The VS70 is primarily designed for Vision Test, allowing for the recording of camera images to verify the correct installation of components. It features standardized interfaces and individual test sequences for easy handling.The VS70 can be integrated into automated production lines, making it an ideal solution for various industries, including automotive, electronics, and medical equipment manufacturing. Its compact size and customizable interfaces ensure reliable and accurate testing results, increasing productivity and reducing errors.

Most popular related searches

medical equipment

electronic medical equipment

vision testing system

medical electronic equipment

medical electronics

VS70 Vision Test

Metric

Dimensions/height min.: 1680 mm
Dimensions/height max.: 1720 mm
Dimensions/width min.: 1200 mm
Dimensions/width max.: 1420 mm
Depth max.: 550 mm
Total weight, without test adapter (modules) approx.: 250 kg
Voltage (AC), input min.: 100 V
Voltage (AC), input max.: 240 V
Frequency, input min.: 50 Hz
Frequency, input max.: 60 Hz
Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
power supply 1, voltage (DC): 24 V
power supply 1, current (DC) max.: 3 A
Total power, standard (depending on the number of power supply units) max.: 1000 W
Ambient temperature, operation min.: 10 °C
Ambient temperature, operation max.: 40 °C
Ambient temperature, storage min.: -10 °C
Ambient temperature, storage max.: 60 °C
Air humidity non-condensing min.: 30 %
Air humidity non-condensing max.: 75 %
Emission sound pressure level (according to DIN 45635) max.: 80 dB
Protection class: IP 10
Test grid width: 750 mm
Test grid depth, horizontal: 300 mm
Test grid area: 0.225 m²
max. number of test adapters (modules) to be installed for size100x100: 2
Test grid inclination, horizontal: 0 °
Maximum permissible load on the test grid: 1,1 / 100 g/cm²
Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
Compressed-air connection: Kupplungsstecker Rectus G1/4 26AF AW13
Pneumatic connections min.: 1
Pneumatic connections max.: 10
Operating system Windows, based: ja
Test software CS WIN nx ®, compatible with all systems: ja
Height control (line laser): Dimensions of test area, length min.: 10 mm
Height control (line laser): Dimensions of test area, length (depending of the axis) max.: 580 mm
Height control (line laser): Dimensions of test area, width min.: 5 mm
Height control (line laser): Dimensions of test area, width max.: 200 mm
Height control (line laser): Linear unit, axis speed min.: 30 mm/s
Height control (line laser): Linear unit, axis speed max.: 200 mm/s
Height control (line laser): Total test time, depending on axis speed (e.g., 100) min.: 1500 ms
Height control (line laser): Total test time, depending on axis speed (e.g., 100) max.: 3500 ms
Height control (line laser): Total test time, depending on Linear unit axis length (e.g., 580) min.: 1500 ms
Height control (line laser): Total test time, depending on Linear unit axis length (e.g., 580) max.: 3500 ms
Vision test (Camera): Dimensions of the test area, length: 300 mm
Vision test (Camera): Dimensions of the test area, width: 200 mm
Vision test (Camera): Exposure time: 125 ms
Vision test (Camera): Possible camera resolution: 2.3, 5.0, 6.2 Mpixel
Vision test (Camera): Total test time depending on Number of different types (e.g. approx. 8): 50 ms
Vision test (Camera): Total test time depending on Number of models learned (e.g. approx. 3 per type): 50 ms
Vision test (Camera): Total test time depending on Number of test positions (e.g. approx. 50): 50 ms
Vision test (camera): Total test time max.: 300 ms

Imperial

Dimensions/height min.: 66.14 in
Dimensions/height max.: 67.71 in
Dimensions/width min.: 47.24 in
Dimensions/width max.: 55.9 in
Depth max.: 21.65 in
Total weight, without test adapter (modules) approx.: 551.15 lb
Voltage (AC), input min.: 100 V
Voltage (AC), input max.: 240 V
Frequency, input min.: 50 Hz
Frequency, input max.: 60 Hz
Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
power supply 1, voltage (DC): 24 V
power supply 1, current (DC) max.: 3 A
Total power, standard (depending on the number of power supply units) max.: 1000 W
Ambient temperature, operation min.: 50 °F
Ambient temperature, operation max.: 104 °F
Ambient temperature, storage min.: 14 °F
Ambient temperature, storage max.: 140 °F
Air humidity non-condensing min.: 30 %
Air humidity non-condensing max.: 75 %
Emission sound pressure level (according to DIN 45635) max.: 80 dB
Protection class: IP 10
Test grid width: 29.52 in
Test grid depth, horizontal: 11.81 in
Test grid depth, vertical: mm
Test grid area: 2.42 ft²
max. number of test adapters (modules) to be installed for size100x100: 2
Test grid inclination, horizontal: 0 °
Maximum permissible load on the test grid: 2,42 / 15,5 lb/in²
Operating pressure (according to ISO 8573-1: 5/5/4) min.: 72.51 psi
Operating pressure (according to ISO 8573-1: 5/5/4) max.: 101.52 psi
Pneumatic connections min.: 1
Pneumatic connections max.: 10
Operating system Windows, based: ja
Test software CS WIN nx ®, compatible with all systems: ja
Height control (line laser): Dimensions of test area, length min.: 0.39 in
Height control (line laser): Dimensions of test area, length (depending of the axis) max.: 11.81 in
Height control (line laser): Dimensions of test area, width min.: 0.19 in
Height control (line laser): Dimensions of test area, width max.: 7.87 in
Height control (line laser): Linear unit, axis speed min.: 1.18 in/s
Height control (line laser): Linear unit, axis speed max.: 7.87 in/s
Height control (line laser): Total test time, depending on axis speed (e.g., 100) min.: 1500 ms
Height control (line laser): Total test time, depending on axis speed (e.g., 100) max.: 3500 ms
Height control (line laser): Total test time, depending on Linear unit axis length (e.g., 580) min.: 1500 ms
Height control (line laser): Total test time, depending on Linear unit axis length (e.g., 580) max.: 3500 ms
Vision test (Camera): Dimensions of the test area, length: 11.81 in
Vision test (Camera): Dimensions of the test area, width: 7.87 in
Vision test (Camera): Exposure time: 125 ms
Vision test (Camera): Possible camera resolution: 2.3, 5.0, 6.2 Mpixel
Vision test (Camera): Total test time depending on Number of different types (e.g. approx. 8): 50 ms
Vision test (Camera): Total test time depending on Number of models learned (e.g. approx. 3 per type): 50 ms
Vision test (Camera): Total test time depending on Number of test positions (e.g. approx. 50): 50 ms
Vision test (camera): Total test time max.: 300 ms
